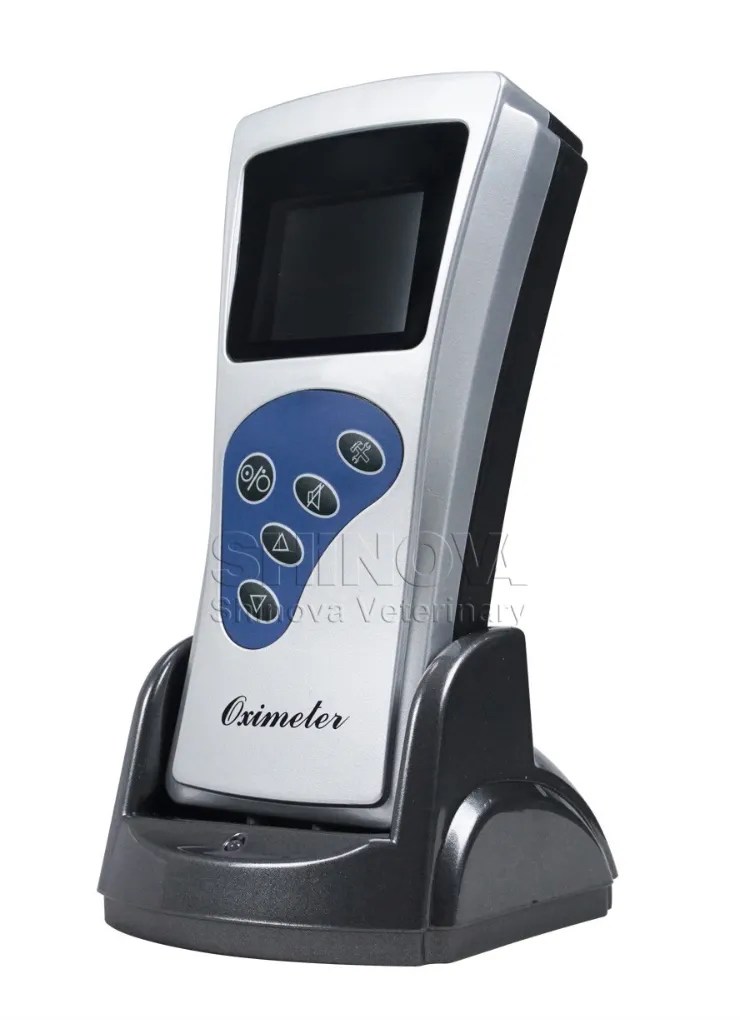

Veterinary Pulse Oximeter Oxi 90V

Specifications & Manuals

Specifications

SpO2
– Measurement range: 0-100%
– Accuracy:
– ±2% during 70%-100%
– ±3% during 60%-69%

Pulse Rate
– Measurement range: 15bpm-400bpm%
– Accuracy: 1 bpm or ±2%, Take the bigger one

Visual Displays and Indicators:
– SpO2 display: Red LED, Variable brightness
– Pulse Rate display: Green LED, variable brightness
– Pulse intensity: Red LED 8 bars
– Power Indicator Light: Normal: Green
– Low Power voltage: Red and Blink
– Low perfusion indicator: Red bar

Audio Indicator:
– Probe off audio indicator (every thirty seconds)
– Pulse audio indicator
– Key-pressing indicator
– Low power voltage

Environmental Specifications:
– Temperature Range: Operating: (0 ~ +50) ℃
– Transport/Storage: (-40 ~ +70)℃
– Relative Humidity: Operating: 10~ 95%
(noncondensing) Transport/Storage: 0~95%

Power Requirements:
– Input: 98~260 VAC, 50/60Hz
– Consumption: ＜80VA

Keys:
– Pellicle keys

The Brochure of this Pulse Oximeter Oxi 90V can be found here:
Pulse Oximeter 90V
