Name: Veterinary ECG Monitor VET-301
SKU: MEC19004
Price: 1479.34 EUR
Availability: InStock

Previous Product

Veterinary ECG Monitor VET-301

€1.479,34 excl. VAT

Veterinary ECG Monitor VET-301

Please ask for a quote (info@equip4vets.com) whenever another configuration is required…another basic set-up and/or additional parts. We would be more than happy to assist you with your requirements!

SKU: MEC19004 Category: Veterinary ECG Monitors

Description

The Veterinary ECG Monitor VET-301 offers a portable ECG monitor with a user-friendly design, intelligent features for a very attractive price/peformance ratio.
The VET-301 is the 3-kanaals ECG monitor from the original manufacturer ECGMAC.

The short featurelist:
– Large Foldable LCD display
Clear and intuitive 0-90° Foldable 7 inch TFT color display with 800*480 resolution. Background with grid,6 leads ECG can be displayed on the same screen
– Built-in Lithium battery
Large storage capacity. Built-in rechargeable lithium high capacity battery
Large internal storage up to 1,000 ECGs
– Ergonomic design.
Alphanumeric keyboard with shortcut keys, efficient in operation. Support barcode scanner to simplify workflow. Portable handle, easy to carry

Peripherals
Built-in thermal printer, imported from Japan.
Paper type: thermal Roll paper and A4 size fax paper

Software features
– Supports lead off alarm
– Simultaneous 6 leads acquisition and display
– Supports multiple working mode:auto, manual and rhythm
– The 2,000Hz sampling frequency to detect accurate pacemaker signal
– 300S real-time ECG waveform freezing and review to assist diagnosis
– Comprehensive file management system to query, delete and edit patient data
– Anti-noise technology with comprehensive AC Filter,DFT Filter,EMG Filter and Low-pass Filter

Inhoud:
– ECG Main Unit (1 pc)

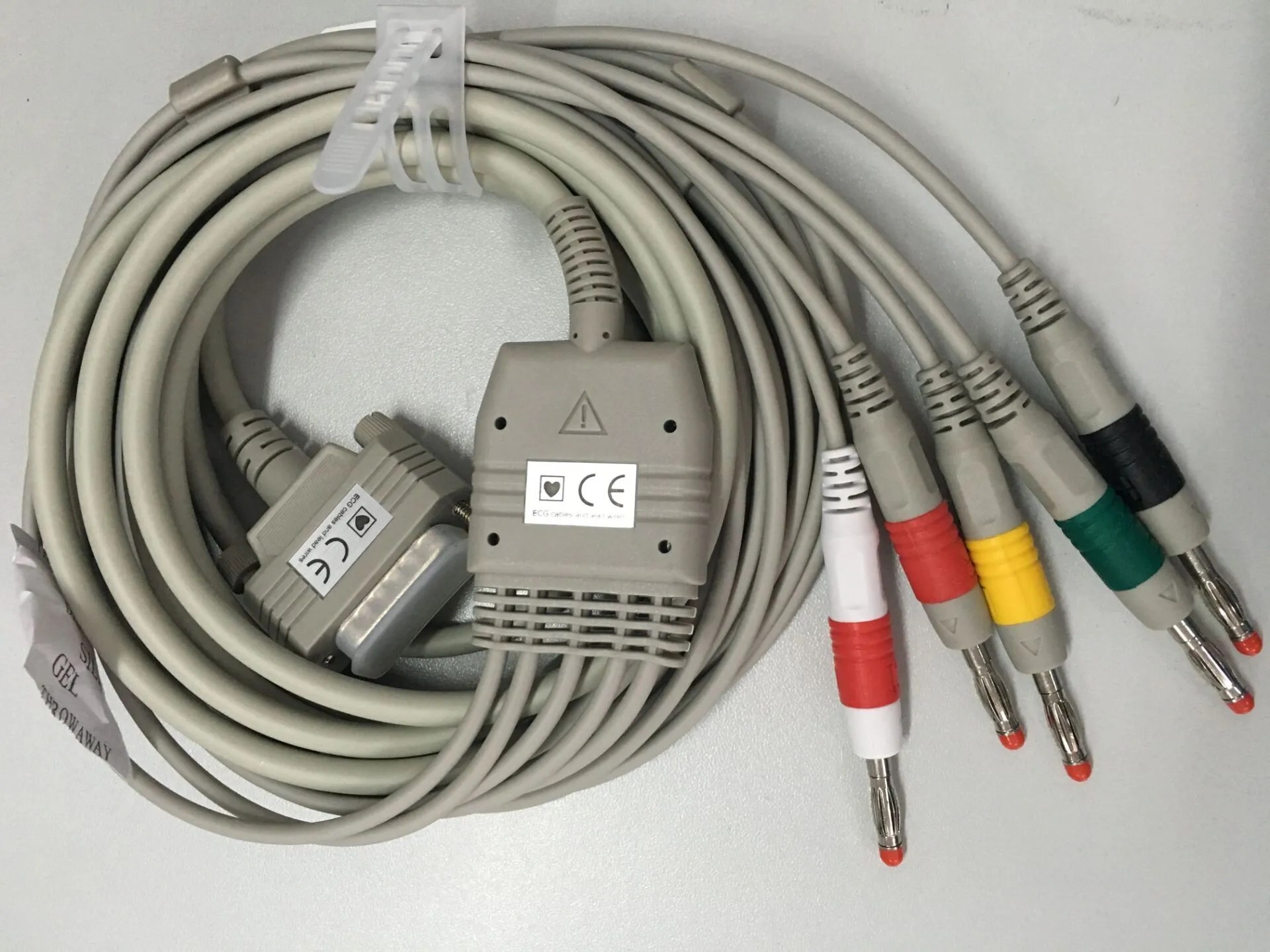

– Animal Cable (1 pc)
– Limb electrodes (clamp) (4 pcs)
– Power Cord (1 pc)
– Grounding Wire (1 pc)
– Thermal Rolled Paper (1 pc)
– User Manual (1 pc)

Additional information

Weight	4,4 kg
Dimensions	31 × 24,4 × 6,5 cm

Specifications & Manuals

Specifications:

– Lead: Standard 6 Leads
– Sampling Method: 6 leads simultaneously
– Measurement Parameter HR, PR interval, QRS duration, QT/QTC, R/QRS/T electric axis, RV5/SVI amplitude
– Input Method: Floating Ground input with defibrillator protection
– Recording Mode:
– Manual Mode (Manual 1, Manual 2, Manual 3)
– Rhythm Mode
– Auto Mode （3CH×2+1R）
– Filter:
– Baseline Drift Filter: OFF/0.05Hz/ 0.16Hz/ 0.25Hz/ 0.32Hz/ 0.5Hz/ 0.67Hz;
– EMG Filter: OFF/ 45Hz/40Hz/ 35Hz/30 Hz/ 25 Hz/20Hz
– AC Filter: OFF /50Hz/ 60Hz
– Low Pass Filter: OFF/75 Hz/ 100 Hz/ 150 Hz
– Input Circuit Current: ≤0.1 μA
– Animal Leakage Currency ＜10μA
– Time Constant ≥3.2 s
– Frequency Response: 0.05～150 Hz (-3 dB)
– Noise Level: ≤15 μVp-p
– Paper Speed 5mm/s, 6.25 mm/s, 10mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s，
– Tolerance: ≤ ±5%
– Standard Sensitivity: 10 mm/mV±0.2 mm/mV
– Sensitivity 2.5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV,
– Tolerance ±5%
– Internal calibration voltage: 1 mV土5%
– Polarization Voltage: ±300mV
– CMRR: ≥100dB
– Dimensions:
– 310mm x 244mm x 65mm
– Nett weight: 2.1KG
– Gros weight: 4.4KG

De manual kunt U hier vinden:
ECGMAC VET-301 ECG User Manual

A short brochure can be observed here:
ECG Monitor VET-301

For the required certificates, please observed these:
ECG Monitor VET-301, 3 kanaals ECG, ECGMAC ISO13485

ECG Monitor VET-301, 3 kanaals ECG, ECGMAC CE

Addons

1. “Guaranteed Uptime” Contract
This product can be offered with a “guaranteed uptime” contract. With this contract the customer is guaranteed to remain in full operation.
Equip4Vets will keep the same or a similar (same functionality) in our store, available as replacement in the event that the original product refuses proper operation.
Please request the T&C and our attractive pricing schedule.

2. “Lease” Contract
This product can also be “leased” for 3 years. After the 3 years there will be a transfer of ownership from Equip4Vets to the customer.
Please request the T&C and our attractive pricing schedule.
