Veterinary ECG Monitor T3V

1.569,42 excl. VAT

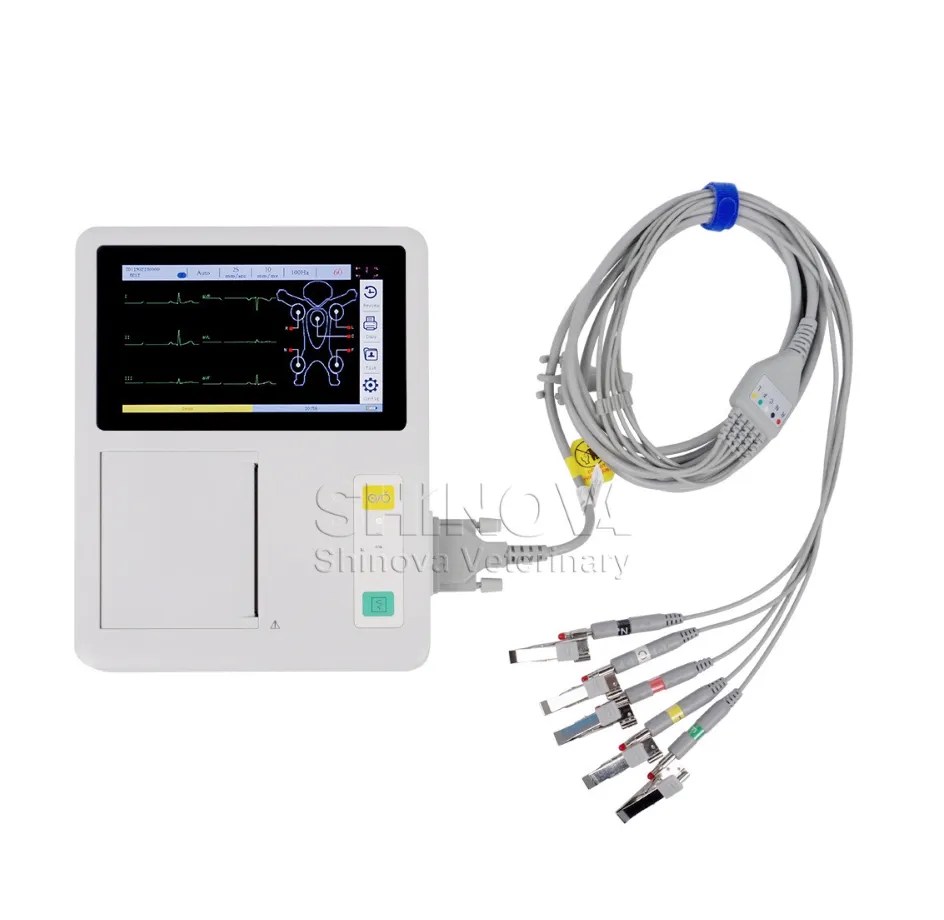

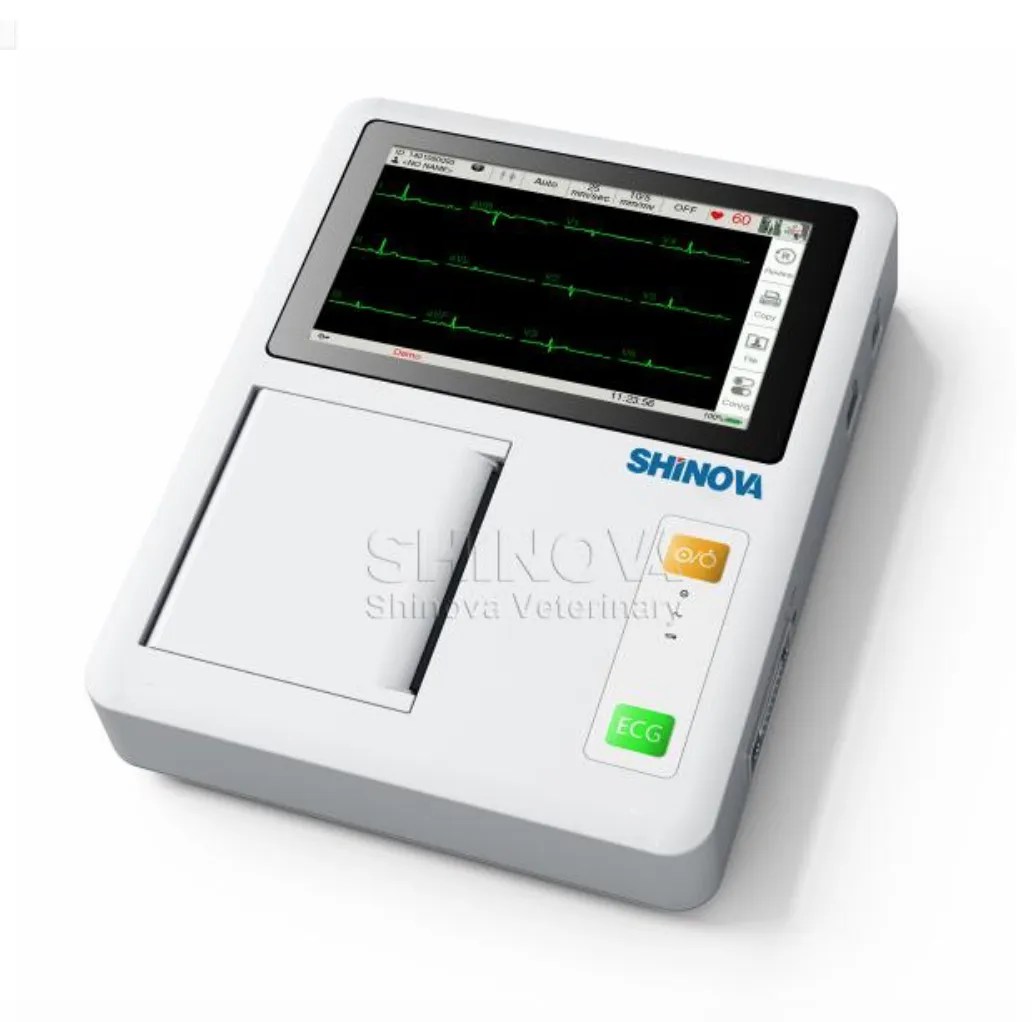

Veterinary ECG Monitor T3V Portable

SKU: MEC19003 Category: Tags: , , , , , ,


The Veterinary ECG Monitor T3V is a portable and very user-friendly ECG monitor.

It has the following short feature list:

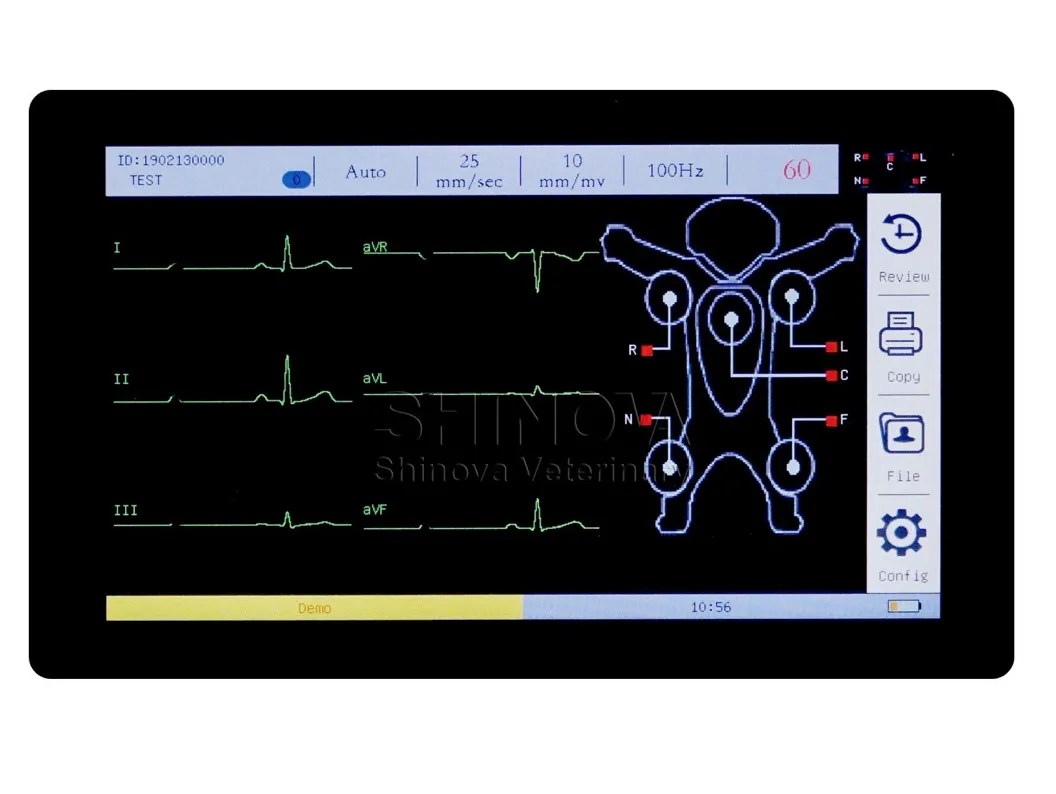

– 3 or 1 channel ECG lead display
– 6.2” smart touch screen (resolution 800×800) with slide and multi-finger operate function
– 122 kinds of automatic arrhythmia detection and printing
– 40,000 ECG built-in records with binary image format
– Real-time sampling and 600 seconds waveforms review
– Analysis & print for any ECG leads within 10 seconds
– Automatic standby and timing on-off function
– Unlimited USB data transfer
– Smart fuzzy ID search function
– Ultra-quick mode battery recharge

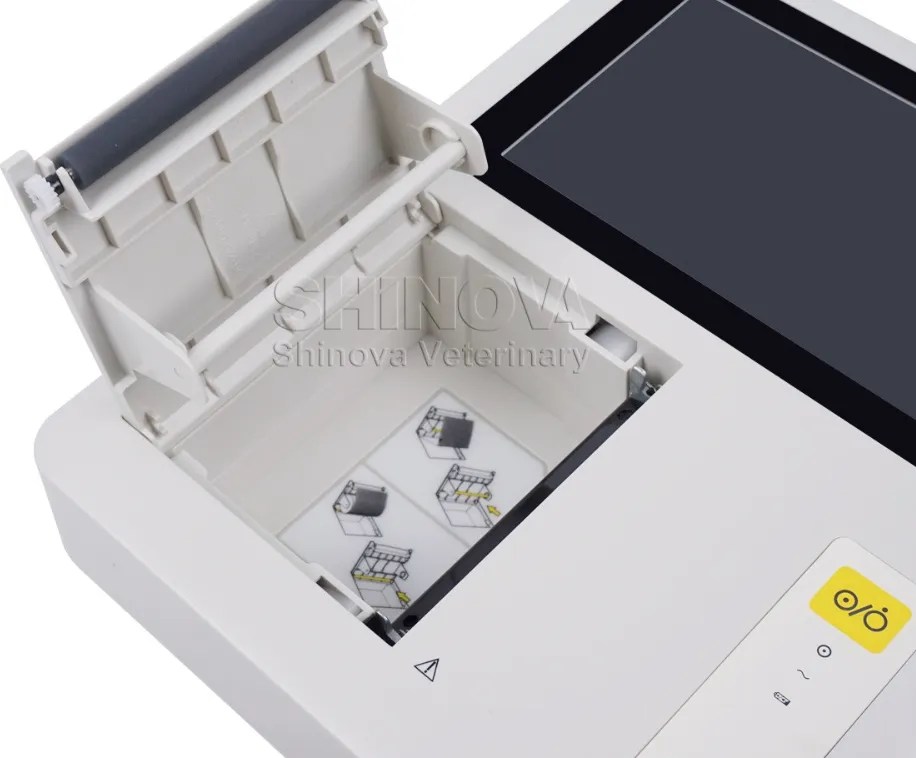

– Built-in thermal printer
– Built-in Li-battery for up to 7 hours durability
– Calibration Printing System.
– Simultaneously 12 Leads acquisition.
– Automatic ECG waveform and parameter measurement.
– 122 kinds of Arrythmia Analysis.
– Up to 7 hours battery working time.
– Thermal Recorder: 80mm Roll paper or Z-fold paper.


Additional information

Weight 2 kg

Specifications & Manuals

The package contains the following:

– Veterinary 5-lead clip ECG cable, Recording paper (roll 80mm*20m), Paper roller, Power cord, Fuse, Ground cable, User manual.


Trolley, Recording paper, External printer, Built-in WiFi, Scanner connectable, Connectable with FTP server for data remote-control, Connectable with PC-based ECG management software

A short Brochure of the Veterinary ECG Monitor T3V can be found here:
ECG T3V_brochure


1. “Guaranteed Uptime” Contract
This product can be offered with a “guaranteed uptime” contract. With this contract the customer is guaranteed to remain in full operation.
Equip4Vets will keep the same or a similar (same functionality) in our store, available as replacement in the event that the original product refuses proper operation.
Please request the T&C and our attractive pricing schedule.

2. “Lease” Contract
This product can also be “leased” for 3 years. After the 3 years there will be a transfer of ownership from Equip4Vets to the customer.
Please request the T&C and our attractive pricing schedule.
