Name: Veterinary ECG Monitor AV serie 10/30
SKU: MEC19001
Availability: InStock

Next Product

Veterinary ECG Monitor AV serie 10/30

Price range: €1.486,78 through €1.635,54 excl. VAT

Veterinary ECG Monitor AV serie 10/30

Please ask for a quote (info@equip4vets.com) whenever another configuration is required…another basic set-up and/or additional parts. We would be more than happy to assist you with your requirements!

Please indicate below, on every question(!), your choice!

SKU: MEC19001 Category: Veterinary ECG Monitors

Description

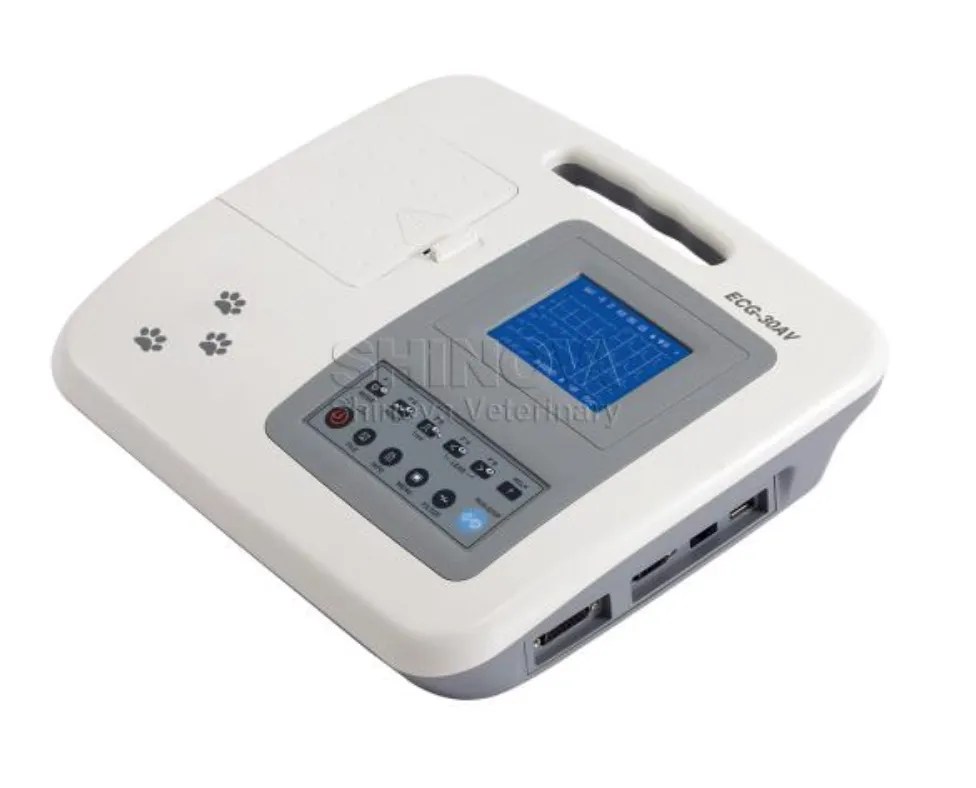

The Veterinary ECG Monitor AV serie 10/30 offers a portable ECG monitor with an attractive Price/Performance ratio.

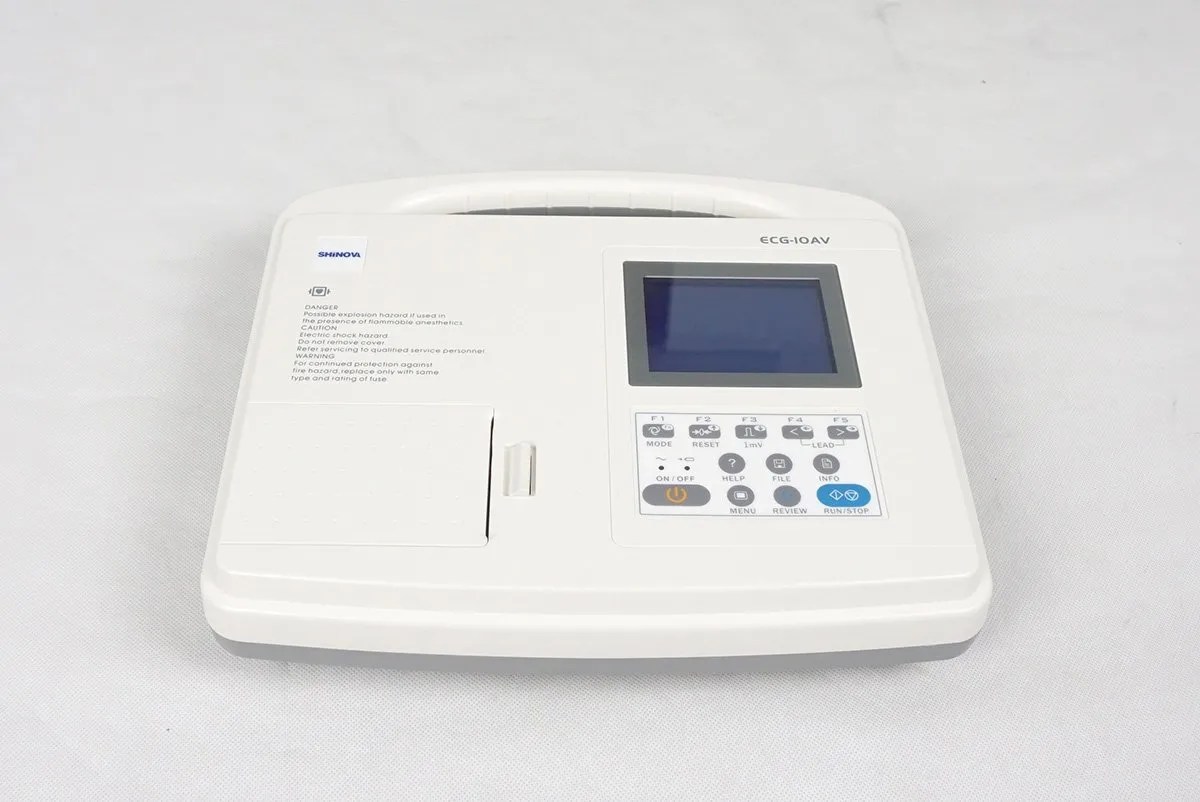

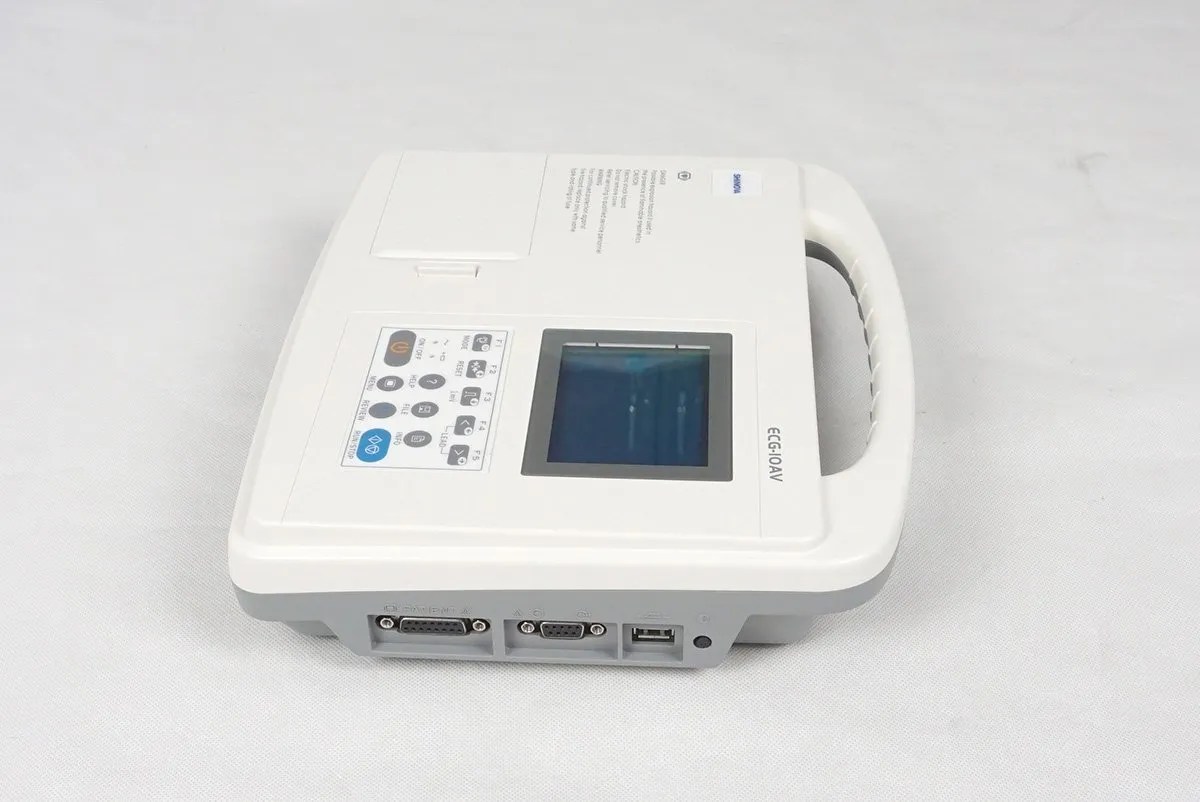

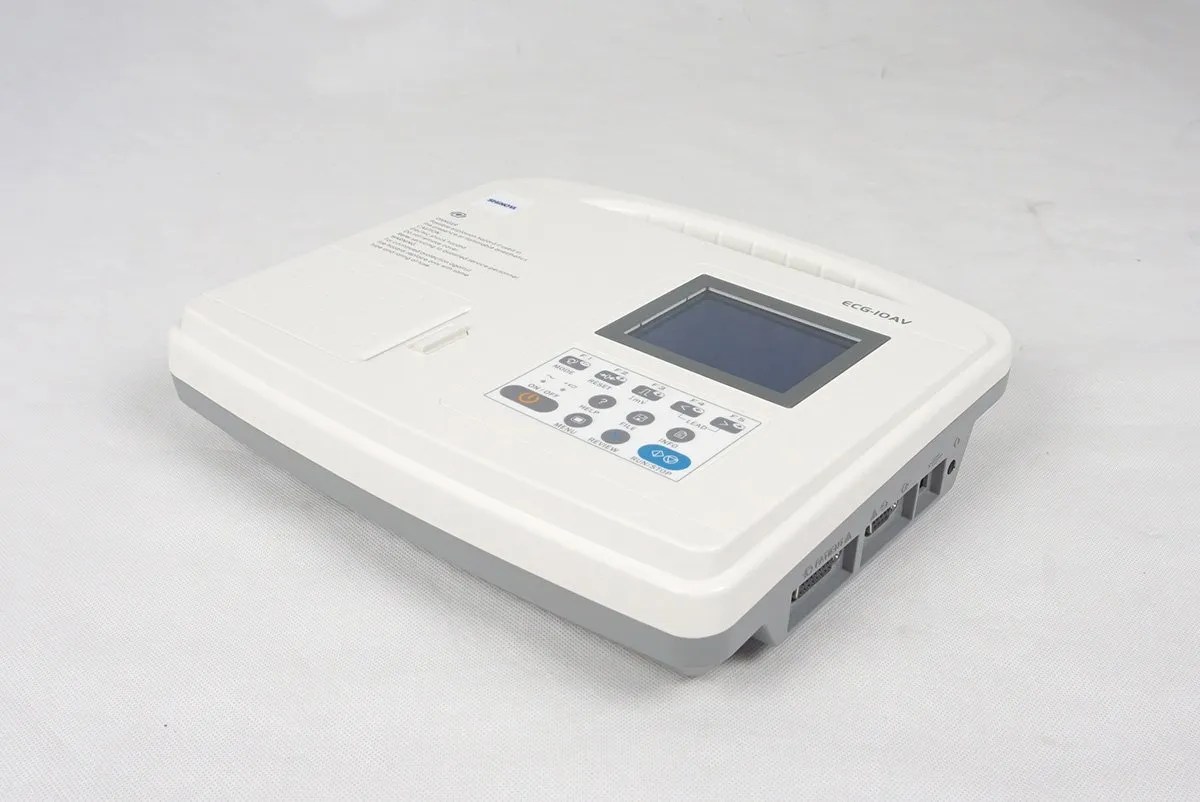

The 10AV is a 1-channel ECG monitor while the 30AV offers 3-channels.
In the event that you would like to have an even higher accuracy of your measurements, you may wat to consider the 6-channel 60LV.

A short feature list of the serie:
– Automatic baseline adjustment for optimum printing
– Pre-10 seconds preview
– Cat & dog software package
– 7-Lead simultaneous acquisition

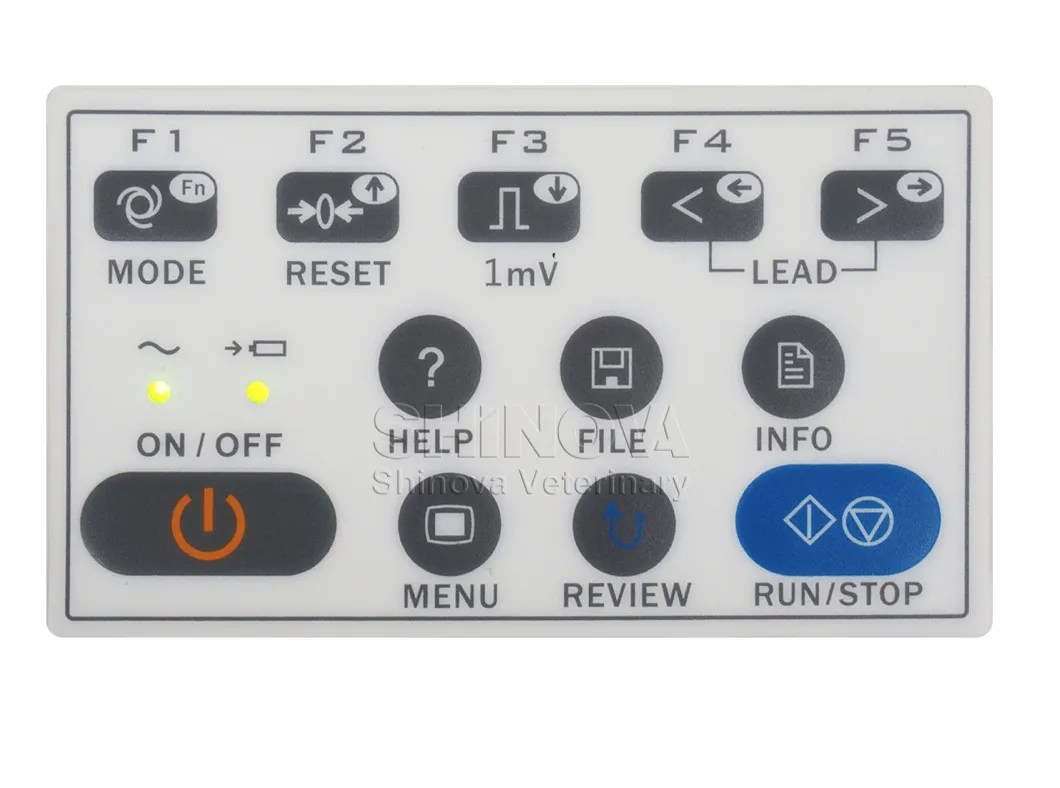

– Operation modes: AUTO, AUTO2, MAN, and ANA
– Filters: HUM, EMG, ADS
– Power supply: AD, DC, Battery
– Lead modes: Standard and Cabrera
– Data storage: 12 ECG Files in main unit, 250 ECG Files to SD card
– Compact & light weight
– Lead off detection
– Low battery indicator

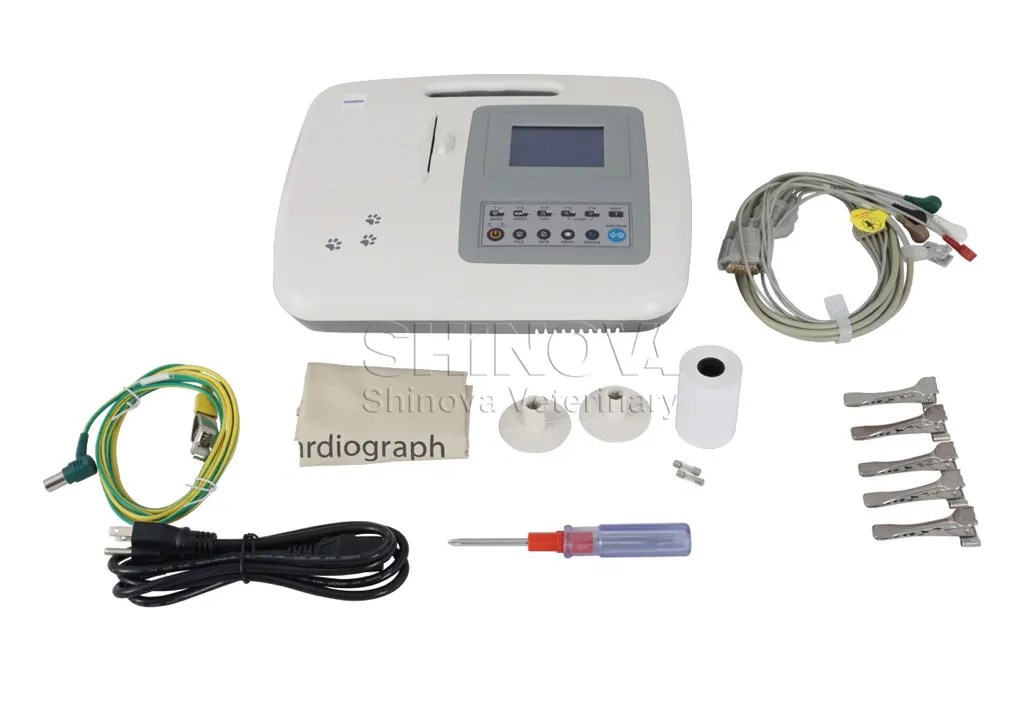

Standard configuration:

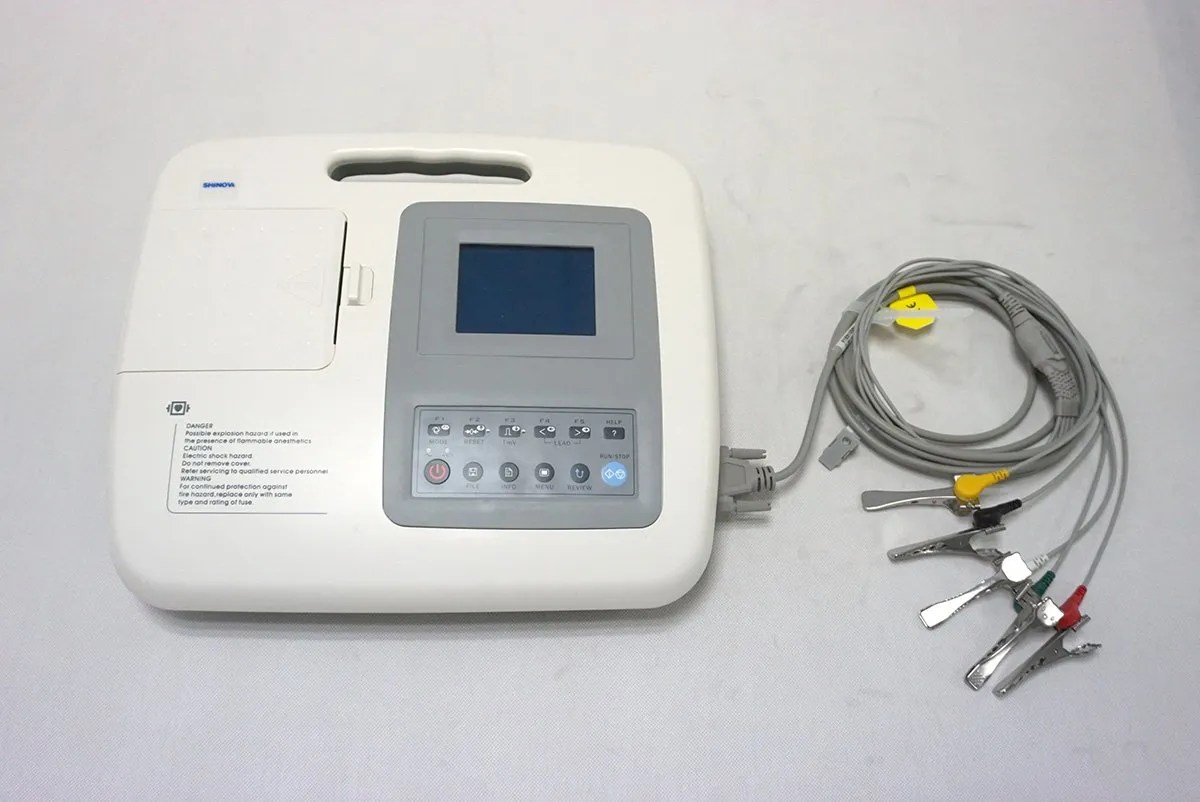

– ECG Main unit, ECG cable, veterinary electrodes (clip type), Dust cover, Rechargeable battery, Thermal Paper, Paperroller, Screwdriver.

Optional configuration:

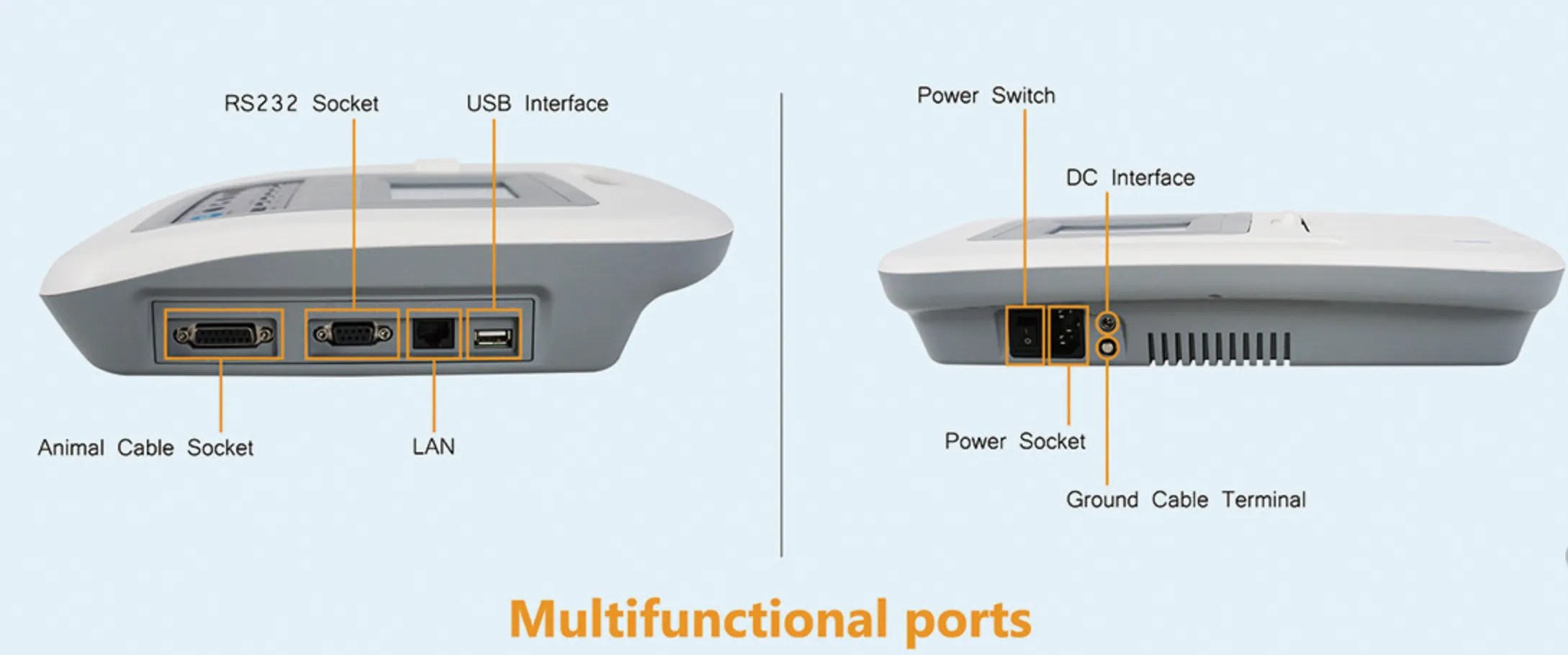

– ECG workstation, USB function board, SD card, Aluminum trolley, Carrying bag.

Additional information

Weight	7 kg
Dimensions	42 × 20 × 38 cm
Model:	ECG 10AV (1 channel), ECG 30AV (3 channel)

Specifications & Manuals

Specifications:

– Safety Standard:IEC Class I, type CF
– Acquisition Mode: 7 lead acquisition simultaneously
– Input Circuit: Floating, protection against defibrillator and pacemaker
– A/D Converter: 12 bit
– Time Constant: >3.2s
– Frequency Response: 0.05Hz ~ 165Hz
– Sensitivity: 2.5, 5, 10, 20, 40 (mm/mV±2%), Auto
– Input Impedance: ≥50MΩ
– Input Circuit Current: ≤50nA
– Calibration Voltage: 1mV±2%
– Noise Level:
– Anti Baseline Drift: Automatic
– Filter:
– EMG Filter: 25Hz~45Hz(-3dB)
– ADS Filter: Auto(0.15-0.50Hz)
– HUM Filter: 50Hz/60Hz (-20dB)
– CMRR: >100dB
– Patient Current Leakage:
– Paper Speed: 6.25/12.5/25/50mm/s

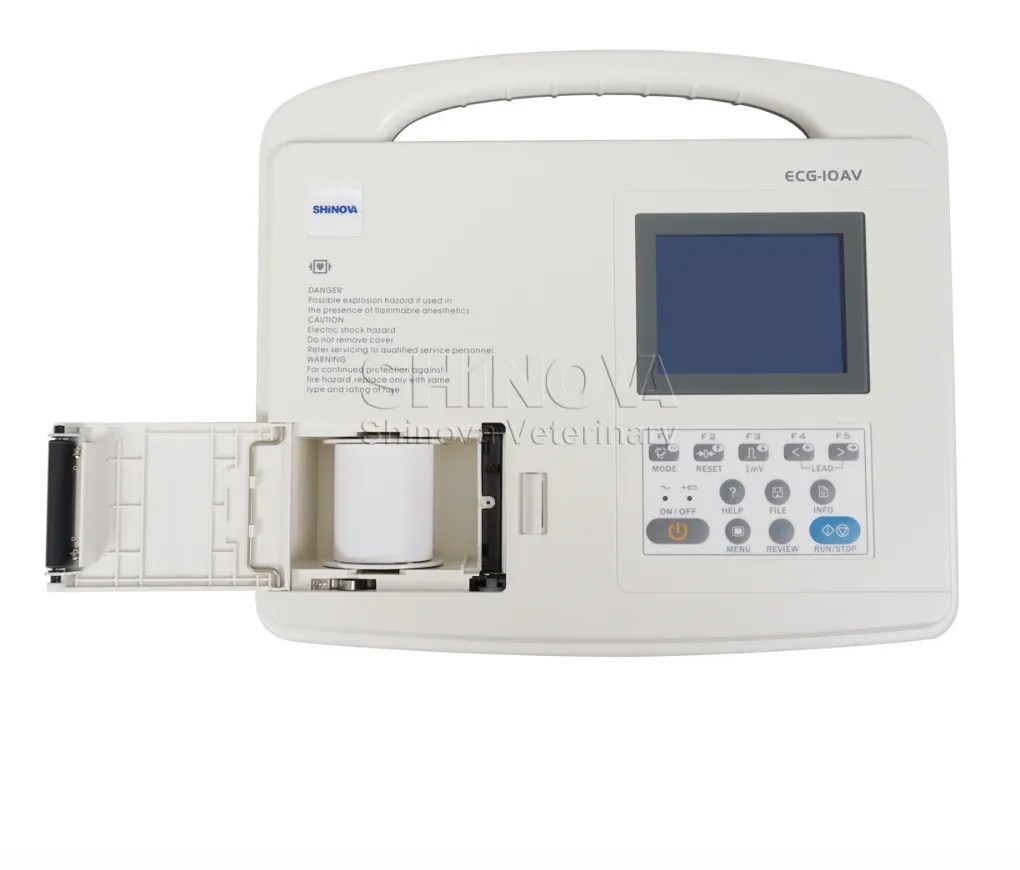

Recording Paper:
– 50mm(width), 20m/30m(length), roll (ECG-10AV)
– 63mm(width), 20m/30m(length), roll (ECG-30AV)
– 112mm(width), 20m/30m(length), roll (ECG-60LV)

Power Supply:
– AC: 110/220V, 50/60Hz
– DC: 12V, built-in rechargeable battery

Dimension:
– 295mmx260mmx60mm (Main unit of ECG-10AV)
– 415mmx195mmx380mm (Carton of ECG-10AV)

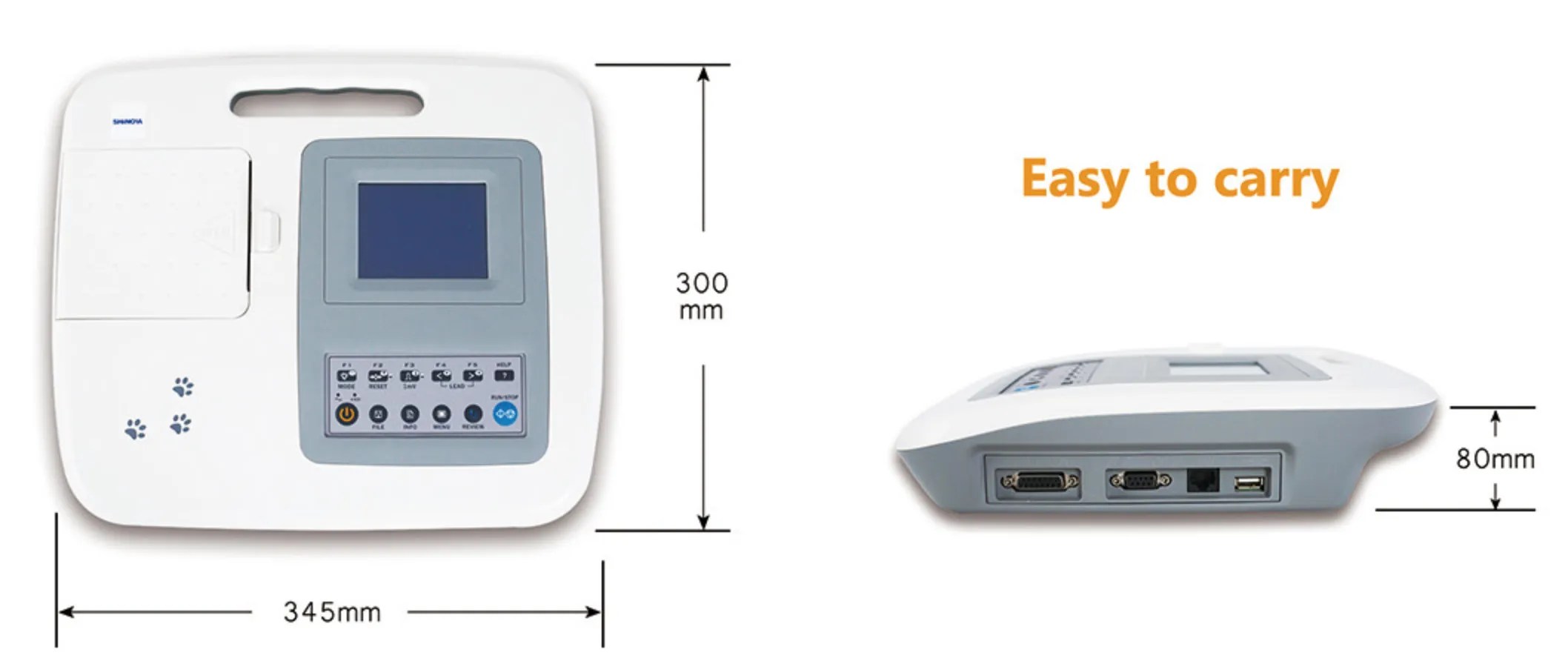

– 345mmx300mmx80mm (Main unit of ECG-30AV)
– 415mmx195mmx380mm(Carton of ECG-30AV)
– 345mmx300mmx80mm (Main unit of ECG-60LV)
– 415mmx195mmx380mm(Carton of ECG-60LV)

– Net Weight:2.3kgs (ECG-10AV), 2.5kgs (ECG-30AV/ECG-60LV)
– Gross Weight: 4.5kgs

The Brochure can be found here:
Veterinaire Portable ECG Monitor 10AV/30AV/60LV

A YouTube video of the ECG-30AV can be seen here:

Addons

1. “Guaranteed Uptime” Contract
This product can be offered with a “guaranteed uptime” contract. With this contract the customer is guaranteed to remain in full operation.
Equip4Vets will keep the same or a similar (same functionality) in our store, available as replacement in the event that the original product refuses proper operation.
Please request the T&C and our attractive pricing schedule.

2. “Lease” Contract
This product can also be “leased” for 3 years. After the 3 years there will be a transfer of ownership from Equip4Vets to the customer.
Please request the T&C and our attractive pricing schedule.
