Veterinary Ultrasound Scanner V1

3.676,864.420,66 excl. VAT

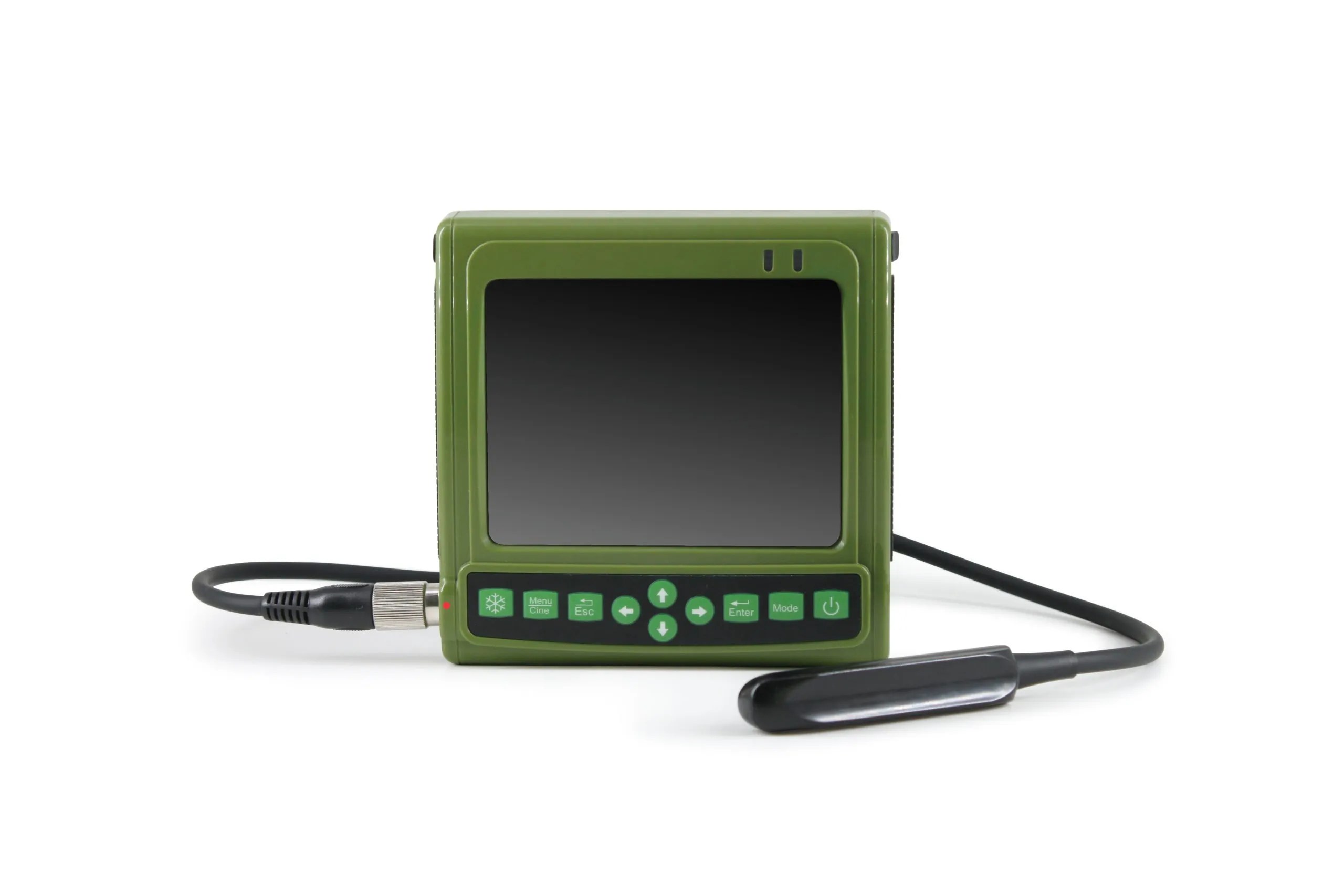

Veterinary Ultrasound Scanner V1


Veterinary Ultrasound Scanner V1

The Veterinary Ultrasound Scanner V1 of Kaixin, thé expert in the area of ultrasound, is again a masterpiece of innovatie from the design labs of KaiXin and the next generation KX5200V/RKU10! Reliable as all the Kaixin products and with an excellent price/performance ratio.
It has been developed for a broad use in the research of pregnancy, fertility and several other deceases as can be found at does, horse, dog, cats, sheep, goats, pigs and the like.
Several probes can be applied for the different kind of measurements and for the different type of animals. Also the V1 offers a wireless connectie option.

– 5.7″ high resolution color LED
– With high quality image resolution & powerful veterinary software package.
– High Capacity Li battery with >5hrs operation time
– B mode ultrasound and backfat measuring function two-in-one, which can meet veterinarians’ most daily demands.
– A mode ultrasound gets accurate backfat and lean rate measurement.
– TVVGA/Freeze, three-in-one, easy to operate.
– 10 kinds grid for quick measurement, make the diagnosis more efficient.
– 6 kinds of operation backgrounds for different visual habits.
– 4 different parameter Preset for different veterinarians to save time.
– 5.8GHz RFID connection with external wireless monitor for display under real time, facilitate
information sharing and remote consultation.
– wifi connection with Phone/Pad and PC ultrasound working station to get image & data transfer & management easily.
– OB record:detailed record the diagnosis results.
– Diagnosis List: record diagnosis quantity, easy for batch management.
– Water proof.

Standard Configuration:
– Main unit 1 pc
– 6.5MHz multi-frequency linear rectal probe 1 pc
(4.5/5.5/6.5/7.5 MHz)
– Power supply adapter 1 pc
– Li-battery 1 pc
– Suitcase 1 pc
– Drive-by-wire switch 1 pc
– Operating bag 1 pc

– Probes:
– 6.5MHz micro-convex probe (5.0/6.5/7.5/9.0 MHz)
– 3.5Mhz loin muscle linear probe (2.0/2.5/3.5/5.0 MHz)
– 3.5MHz convex probe (2.0/2.5/3.5/5.0 MHz)
– 7.5MHz linear probe (6.0/6.5/7.5/9.0 MHz)
– 4.0MHz convex rectal probe (2.0/2.5/4.0/5.0 MHz)

-Wireless monitor

Additional information

Weight 1,1 kg
Dimensions 15,8 × 15,8 × 6,5 cm

std 6.5MHz linear rectal, 3.5MHz convex abdomen, 6.5MHz micro-convex, 7.5MHz high freq linear, 3.5MHz loin muscle linear, 4.0MHz convex rectal

Specifications & Manuals

Short Technical Specifications:
– Scanning mode:electronic convex & linear
– Mode:B、B/B、B/M、M、A
– Main frequency:3.5/6.5/7.5MHz
– Measurement:distance, area, OB, backfat, lean rate, etc
– Battery driving time:about 5 hours
– Dimension:158×158×65 (mm,L×W×H)
– Net Weight:1.1kg
– Wifi type:802.11g/20MHz/2.4G
– APP support: Android、Windows
– Vector:PAD/Phone/PC

The Leaflet of the Veterinary Ultrasound Scanner V1 from Kaixin can be found here:
V1 vet Ultrasound Scanner Leaflet


1. “Guaranteed Uptime” Contract
This product can be offered with a “guaranteed uptime” contract. With this contract the customer is guaranteed to remain in full operation.
Equip4Vets will keep the same or a similar (same functionality) in our store, available as replacement in the event that the original product refuses proper operation.
Please request the T&C and our attractive pricing schedule.

2. “Lease” Contract
This product can also be “leased” for 3 years. After the 3 years there will be a transfer of ownership from Equip4Vets to the customer.
Please request the T&C and our attractive pricing schedule.
