Veterinary Ultrasound Scanner KX5600V B Mode

2.395,873.139,67 excl. VAT

Veterinary Ultrasound Scanner KX5600V B Mode

Description

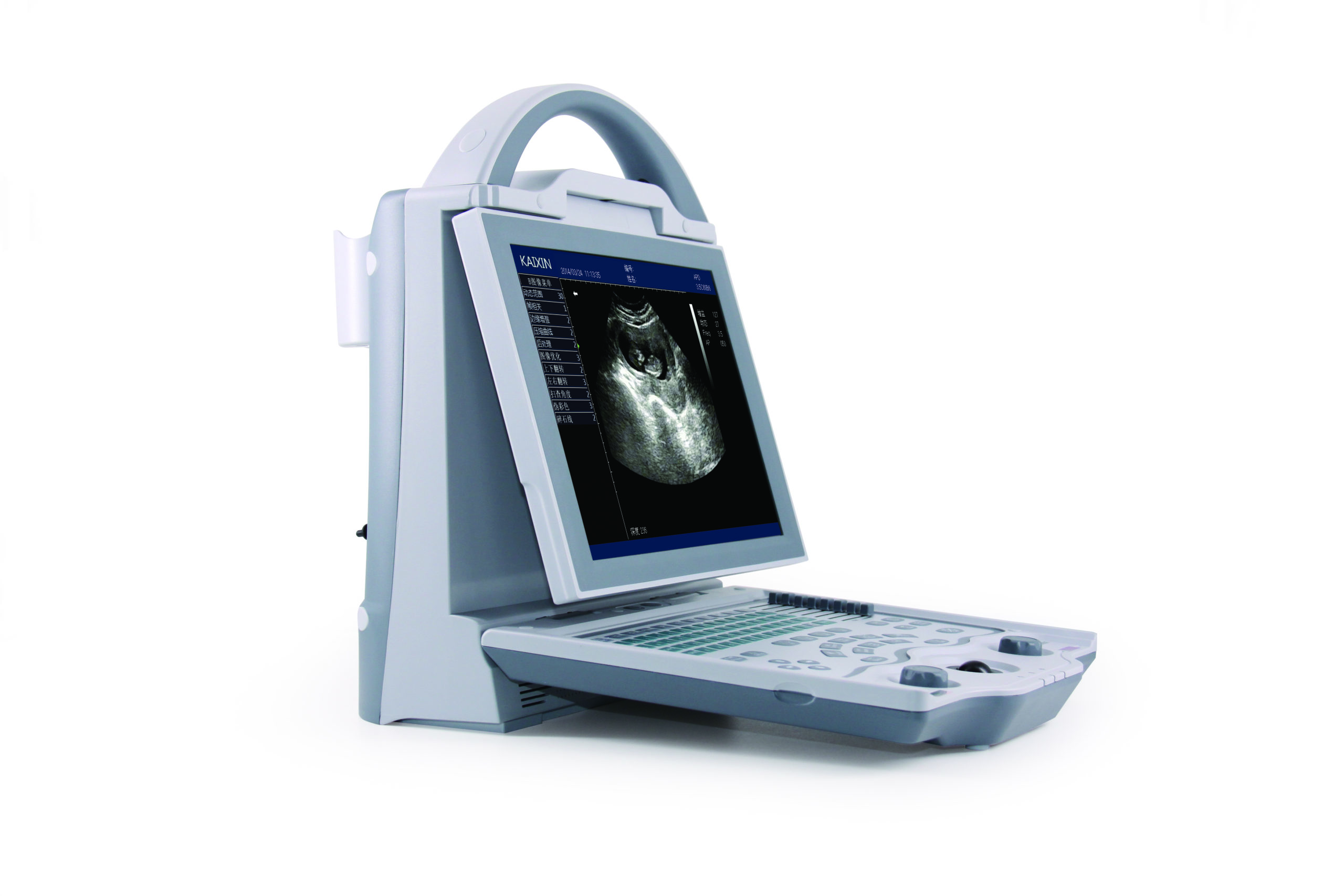

Veterinary Ultrasound Scanner KX5600V B Mode

The Veterinary Ultrasound Scanner KX5600V B Mode is one of the new B Mode Ultrasound Scanners of Kaixin, thé expert in ultrasound, a must for the professional. A B Mode Ultrasound Scanner but still in the top range of Ultrasound Scanners with an excellente price/performance. Developed for broad application such as pregnancy, fertility research as well as several diagnosis as abdomen, cardio, OB, small parts, vessels…etc, for cow, horse, dog, cat, goat and pig.
It can be equipped with different probes for the different measurements and for the several animals.

Features:
– Gray scale: 256
– 10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle;
– Body marks:1.General 2. Bovine 3.Canine 4.Equine 5.Feline 6.Cardio 7. Swine, total 27 kinds body marks indicating probe position;
– Display mode:B、2B、4B 、B/M、M ;
– Adjustable depth: 10 grades, max depth to 236mm;
– Image storage: 4G hard disk to permanently store about 5000 frames images;
– Large capacity Li battery slot for the optional battery ensuring>200 min operation
– Cine loop:256 frames;
– OB measurement including: Cattle, dogs, horses, cats, goats, camels and sheep and pre-gestational age birth;
– Other measurement: pig’s meat factor measurement;
– KX5600 probe scanning depth:
3.5Mhz convex probe: 110-236 mm
7.5MHz linear probe: 42- 104 mm
6.5Mhz rectal linear probe: 49-111 mm
6.5Mhz micro-convex probe: 49-111 mm
– One-key-light keyboard function for black room use
– One-key store: concise and practical;
– One-key review:fast, practical image review function;
– One-key Print;
– One-key Transfer the current frozen image to net workstation to complete its image text report and print directly;
– Powerful data management

Standard Configuration:
– Main unit 1 pc
– With probes:
– 6.5MHz micro-convex probe (5.0/6.5/7.5/9.0 MHz)
– 6.5Mhz depth:60mm, if change frequency: 50-105mm
– Power supply adapter 1 pc
– Reticle 1pc;
– Two probe sockets

Optional:
– Optional probes
– 6.5MHz linear rectal probe (4.5/5.5/6.5/7.5 MHz) 1pc;
6.5MHz depth:60mm, if change frequency: 50-105 mm.
– 3.5Mhz loin muscle linear probe (2.0/2.5/3.5/5.0 MHz)
3.5Mhz depth: 180mm, if change frequency: 160-190mm
– 3.5MHz convex probe (2.0/2.5/3.5/5.0 MHz)
3.5MHz depth:170mm, if change frequency: 120-190 mm.
– 7.5MHz linear probe (6.0/6.5/7.5/9.0 MHz)
7.5MHz depth:60mm, if change frequency: 50-105 mm.
– 4.0MHz convex rectal probe (2.0/2.5/4.0/5.0 MHz)
4.0Mhz depth:170mm, if change frequency: 120-190 mm.

– Battery charger
– Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh
– Thermal Printer (Sony UP-897MD)
– Trolley
– Ethernet switch

Additional information

Weight 4,5 kg
Dimensions 25,6 × 15,0 × 32,6 cm
Probe

std 6.5MHz micro-convex, 3.5MHz convex, 7.5MHz high freq linear, 6.5MHz linear rectal, 3.5MHz loin muscle linear

Battery

Yes, No

Specifications & Manuals

Short Technical Specification:
– 10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle;
– Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable.
– Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese;
– Two probe sockets, auto-identify different optional probe;
– Body marks:1.General 2. Bovine 3.Canine 4.Equine 5.Feline 6.Cardio 7. Swine, total 27 kinds body marks indicating probe position;
– Display mode:B、2B、4B 、B/M、M ;
– Adjustable depth: 10 grades, max depth to 236mm;
– Gain:0~127dB;
– Contrast:27~90dB;
– Gray scale:256;
– 8 steps intelligent TGC;
– 8 kinds pseudo colors;
– Image storage: 4G hard disk to permanently store about 5000 frames images;
– Cine loop:256 frames;
– Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position);
– the gravel software package with real-time position line measurement
– Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc.
– Cardio measurement:Depth, slope, heart rate, cycle;
– OB measurement including: Cattle, dogs, horses, cats, goats, camels and sheep and pre-gestational age birth;
– Other measurement: pig’s meat factor measurement;
– OB report function;
– One-key store: concise and practical;
– One-key review:fast, practical image review function;
– One-key Print;
– One-key Transfer the current frozen image to net workstation to complete its image text report and print directly;
– Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station);
– Unique One-key-light keyboard function for black room use;
– Display brightness adjustable;
– Dual TV output: PAL/NTSC, can connect video printer when necessary;
– Power supply:100-240V~ 1.2-0.6A frequency:50-60Hz;
– Power supply adaptor output:DC12.8V 3.0A;

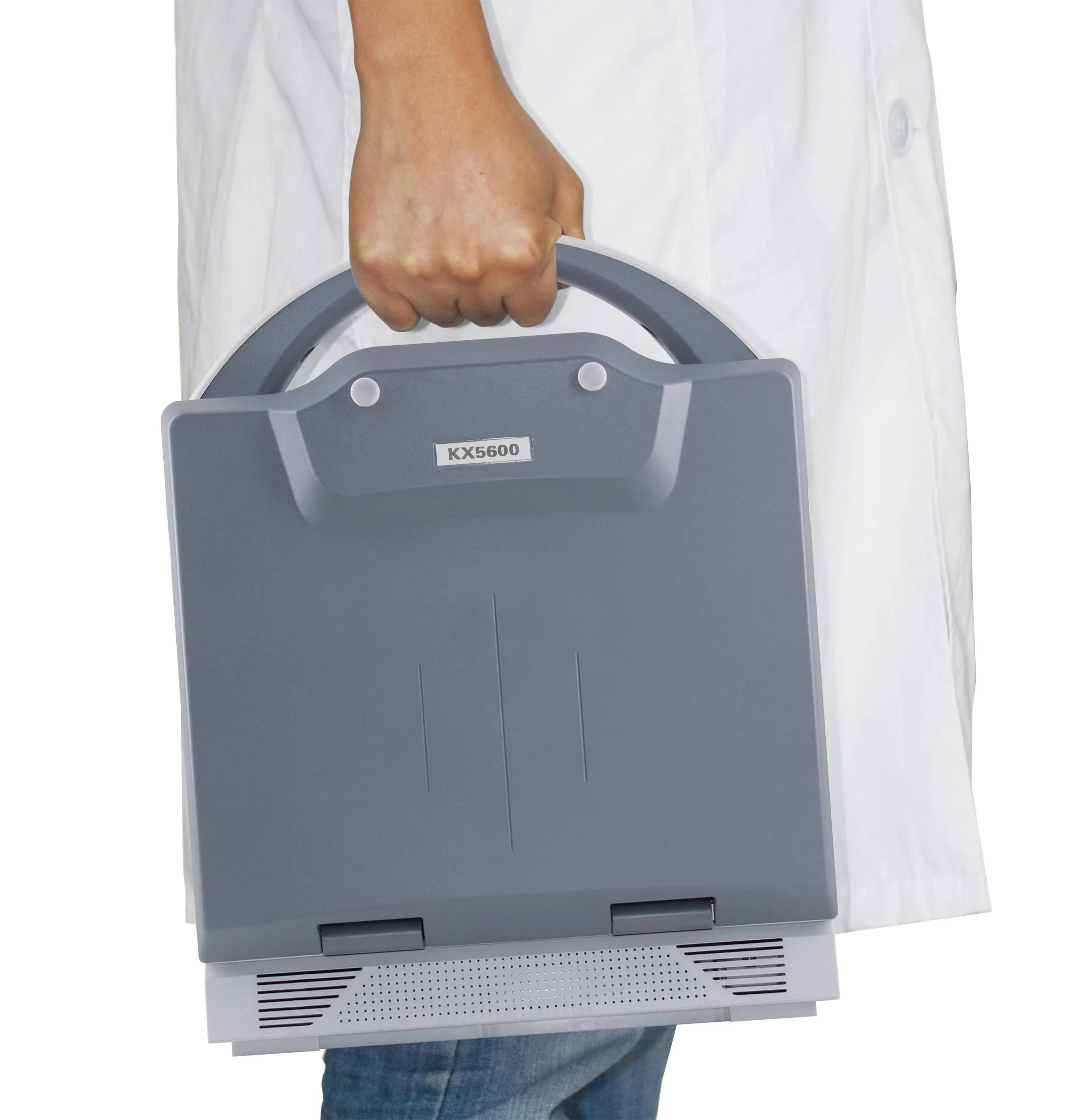

– Main unit weight:3.5 kg(without accessories);
– Main unit dimension:256×150×326mm(L×W×H);
– KX5600 probe scanning depth:
3.5Mhz convex probe: 110-236 mm
7.5MHz linear probe: 42- 104 mm
6.5Mhz rectal linear probe: 49-111 mm
6.5Mhz micro-convex probe: 49-111 mm
– Warranty main unit + probes 3 years, batteries and accessories 1 year

The Leaflet of KaiXin KX5600 B Mode Ultrasound Scanner can e found here:
KaiXin KX5600 Vet B mode Ultrasound Scanner

A detailed Manual of the Veterinary Ultrasound Scanner KX5600V B Mode can be found here:
KaiXin KX5600 Vet B Mode Ultrasound Scanner user’s manual V1.00
