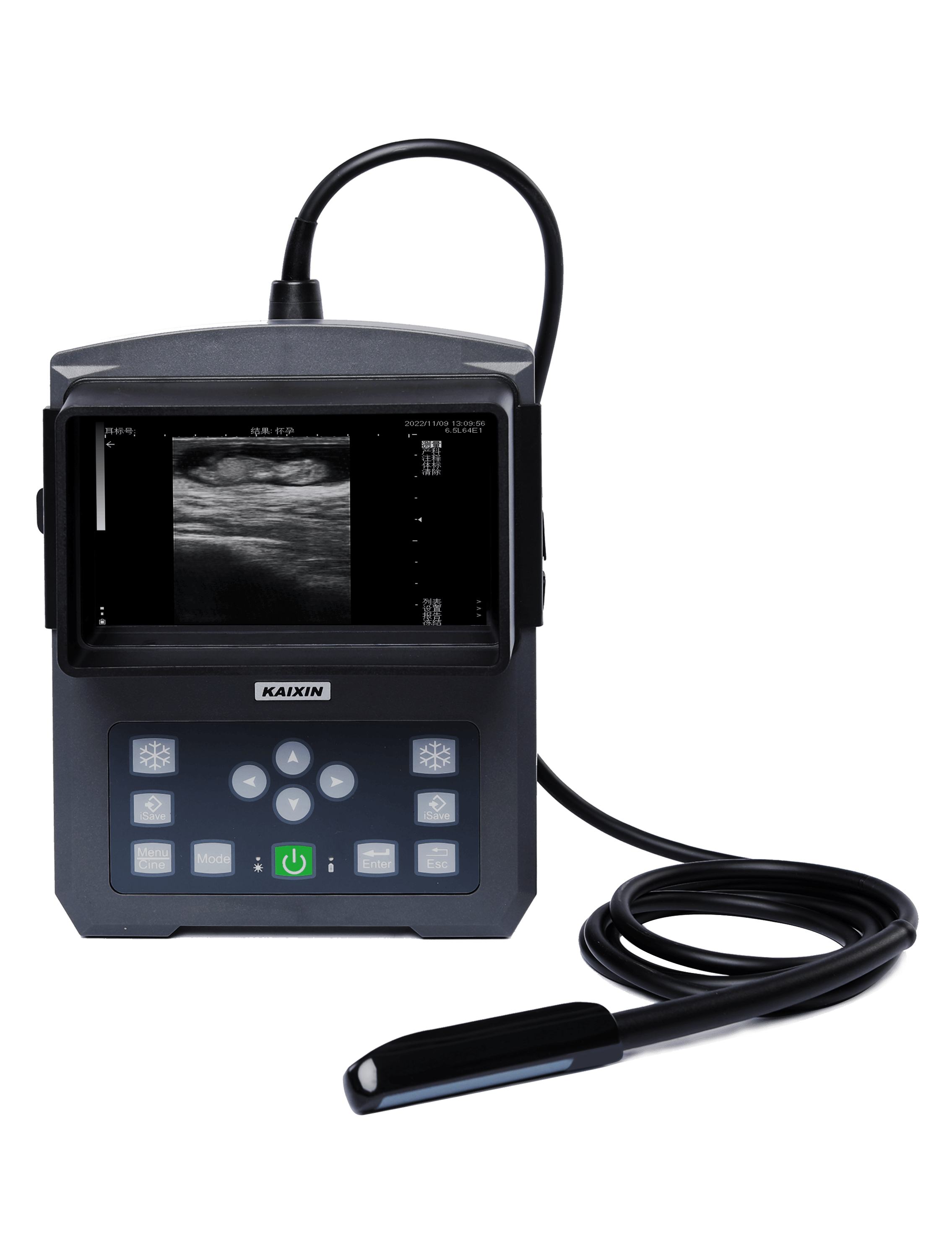

Veterinary Ultrasound Scanner KX5600G

Specifications & Manuals

Features:

– Display: 7.0 inch LED screen
– Multiple interface Languages: Chinese, English, French, Russian, Spanish, Portuguese, Polish, etc.
– Single probe connector configuration, with automatic identification technology, supports a variety of probe options.
– Body mark: A total of 31 body marks with probe position.
– Scan mode: Electronic convex array, linear array.
– Five Display modes: B, B/B, 4B, B/M, M.
– Frequency: 3.5/4.0/6.5/7.5MHz.
– Gain Range: 0～127dB.
– Intelligent TGC control: Far and near field adjustment; Near field: 0～-31dB; Far field: 0～31dB.
– Dynamic adjustment range: 27～90dB.
– Gray: Level 256.
– Frequency conversion of the probe: 4 level frequency conversion (conversion point depending on the different probes).
– Frame correlation: Four-level adjustment: 0, 1, 2, 3.
– Image processing(IP): Four-level adjustment: 0, 1, 2, 3.
– Edge enhancement: Four-level adjustment: 0, 1, 2, 3.
– Designed with partial enlargement and partial color enhancement.
– 8 depth ranges, the maximum display depth is 200mm.
– With the image up and down, left and right flip function.
– Color selection: 8 color image conversion (including a black and white image).
– Image filters: 2 types.
– Image storage: One-key storage, 420 images can be permanently stored.
– Cine Loop: 246 frames.
– Automatic ruler: display the back-fat ruler, easy for visually check, focus on a quick back-fat thickness measurement.
– Display pregnancy test results for easy recording and data management.
– Equipped with image parameter recovery function.
– General measurements: distance, perimeter, area, volume, cycle, heart rate, slope.
– Obstetric measurement: gestational age and expected date of birth for Bovine, Equine, Ovine, Canine, Feline, Goat, Llama, Swine.
– The function of measuring and calculating the lean meat percentage of pigs.
– Obstetric report function.
– Energy saving function.
– Character brightness: The character brightness can be selected among 160, 192, 224, and 255.
– Key tone: 2 states (on, off).
– Multiple Grid: 8 states (no grid, line grid, dot grid, 10mm pitch dot ruler, 2mm pitch dot ruler, 10mm and 2mm Spacing point scale, grid with 1mm spacing longitudinally, grid with 5mm spacing longitudinally, grid with 10mm spacing longitudinally at different depths).
– Checking list: record the pregnancy status of each check, convenient for batch management of the data; Maximum storage of 200 checklists.
– Dual-standard TV output: PAL/ NTSC, can be connected to a video recorder.
– WIFI connection APP software to easy realize the transmission and management of images and data.
– WIFI types: 802.11g/20MHz/2.4G.
– Support platform and carrier for the APP software: mobile phones and tablet computers with Android system (support version 10.0 and above).
– App language: Chinese and English.
– Dual power supply. Power supply: 100-240V～±10% 1.2-0.6A Frequency: 50-60Hz±1Hz.
– Battery configuration: One piece large-capacity (5500mAh) lithium battery, work for at least 6 hours.
– Host size: 202mm (length) × 251mm (width) × 125mm (height) (Size for Hood installed).
– Host weight: 1.7kg (excluding accessories).
– Warranty: Scanner/Probe 2 years, acccessories 1 year

The Manual of the Veterinary Ultrasound Scanner KX5600G from Kaixin can be studied here:
Veterinary Ultrasound Scanner KX5600G User Manual V1.00

The KaiXin KX5600G leaflet can be observed here:
Veterinary Ultrasound Scanner KX5600G Leaflet
