Veterinary Ultrasound Scanner KX5600F

2.891,743.635,54 excl. VAT

Veterinary Ultrasound Scanner KX5600F

SKU: USN19009 Category: Tags: , , , , , ,

Description

Veterinary Ultrasound Scanner KX5600F

The Veterinary Ultrasound Scanner KX5600F of Kaixin, thé expert in the area of ultrasound, is again a masterpiece of innovatie from the design labs of KaiXin! Reliable as all the Kaixin products and with an excellent price/performance ratio.
It is a full digital ultrasonic diagnostic instrument and has been developed for a broad use in the research of pregnancy/fertility, suitable for ultrasound diagnosis of Bovine, Equine, Ovine, Canine, Feline, Goat, Llama, Swine and other animals.
Several probes can be applied for the different kind of measurements and for the different type of animals.

Features:
– Display: 5.6 inch LCD screen.
– Multiple interface Languages: support 7 languages, Chinese, English, French, Russian, Spanish, Portuguese, Polish, etc.
– Single probe connector configuration, with automatic identification technology, supports a variety of probe options.
– Body mark: A total of 31 body marks with probe position.
– Scan mode: Electronic convex array, linear array
– Five Display modes: B, B/B, 4B, B/M, M
– Frequency: 3.5/4.0/6.5/7.5MHz.
– Gain Range: 0~127dB.
– Intelligent TGC control: Far and near field adjustment; Near field: 0~-31dB; Far field: 0~31dB.
– Dynamic adjustment range: 27~90dB.
– Gray: Level 256.
– Frequency conversion of the probe: 4 level frequency conversion (conversion point depending on the different probes).
– Frame correlation: Four-level adjustment: 0, 1, 2, 3.
– Image processing(IP): Four-level adjustment: 0, 1, 2, 3.
– Edge enhancement: Four-level adjustment: 0, 1, 2, 3.
– Design with the function of partial enlargement and partial color enhancement.
– 8 depth ranges, the maximum display depth is 200mm.
– With the image up and down, left and right flip function.
– Color selection: 8 color image conversion (including a black and white image).
– Image filters: 2 types.
– Image storage: One-key storage, 420 images can be permanently stored.
– Cine Loop: 246 frames.
– Automatic ruler: display the back-fat ruler, easy for visually check, focus on a quick back-fat thickness measurement.
– Display pregnancy test results for easy recording and data management.
– Equipped with image parameter recovery function.
– General measurements: distance, perimeter, area, volume, cycle, heart rate, slope.
– Obstetric measurement: gestational age and expected date of birth for Bovine, Equine, Ovine, Canine, Feline, Goat, Llama, Swine.
– The function of measuring and calculating the lean meat percentage of pigs.
– Obstetric report function.
– Energy saving function
– Character brightness: The character brightness can be selected among 160, 192, 224, and 255.
– Key tone: 2 states (on, off).
– Multiple Grid: 8 states (no grid, line grid, dot grid, 10mm pitch dot ruler, 2mm pitch dot ruler, 10mm and 2mm Spacing point scale, grid with 1mm spacing longitudinally, grid with 5mm spacing longitudinally, grid with 10mm spacing longitudinally at different depths).
– Checking list: record the pregnancy status of each check, convenient for batch management of the data; Maximum storage of 200 checklists.
– Dual-standard TV output: PAL/ NTSC, can be connected to a video recorder.
– Dual power supply. Power supply: 100-240V~±10% 1.4-0.6A Frequency: 50-60Hz±1Hz.
– Battery configuration: One large-capacity (5200mAh) lithium battery, work for at least 5 hours.
– Host size: 285mm (length) × 143mm (width) × 35mm (height).
– Host weight: 1.1kg (excluding accessories).

Standard Configuration:

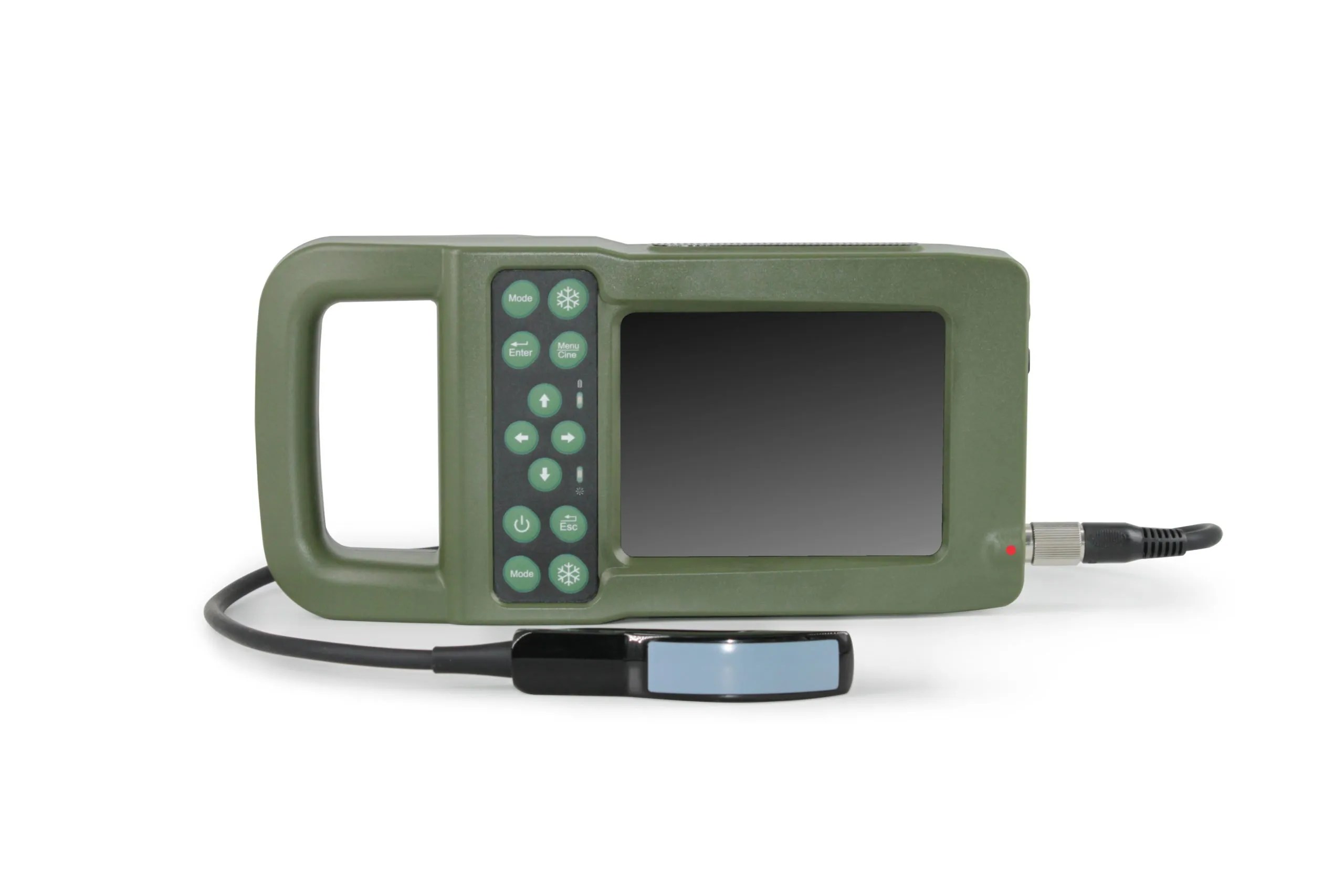

– Main unit: 1pc
– 6.5MHz linear rectal probe: 1pc
– Power Adapter:1pc
– Probe holder: 1pc

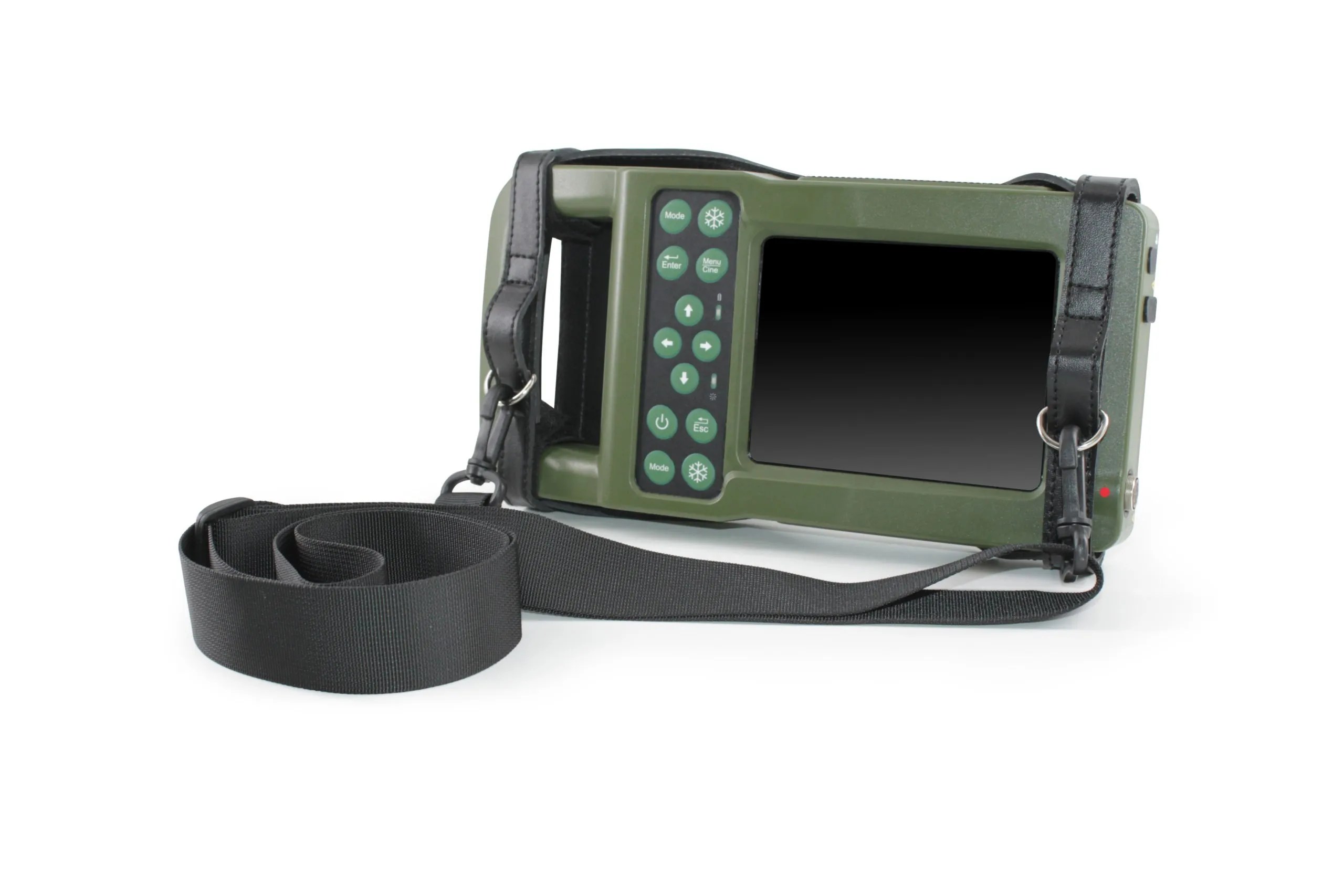

– Strap: 1pc
– Leather bag: 1pc

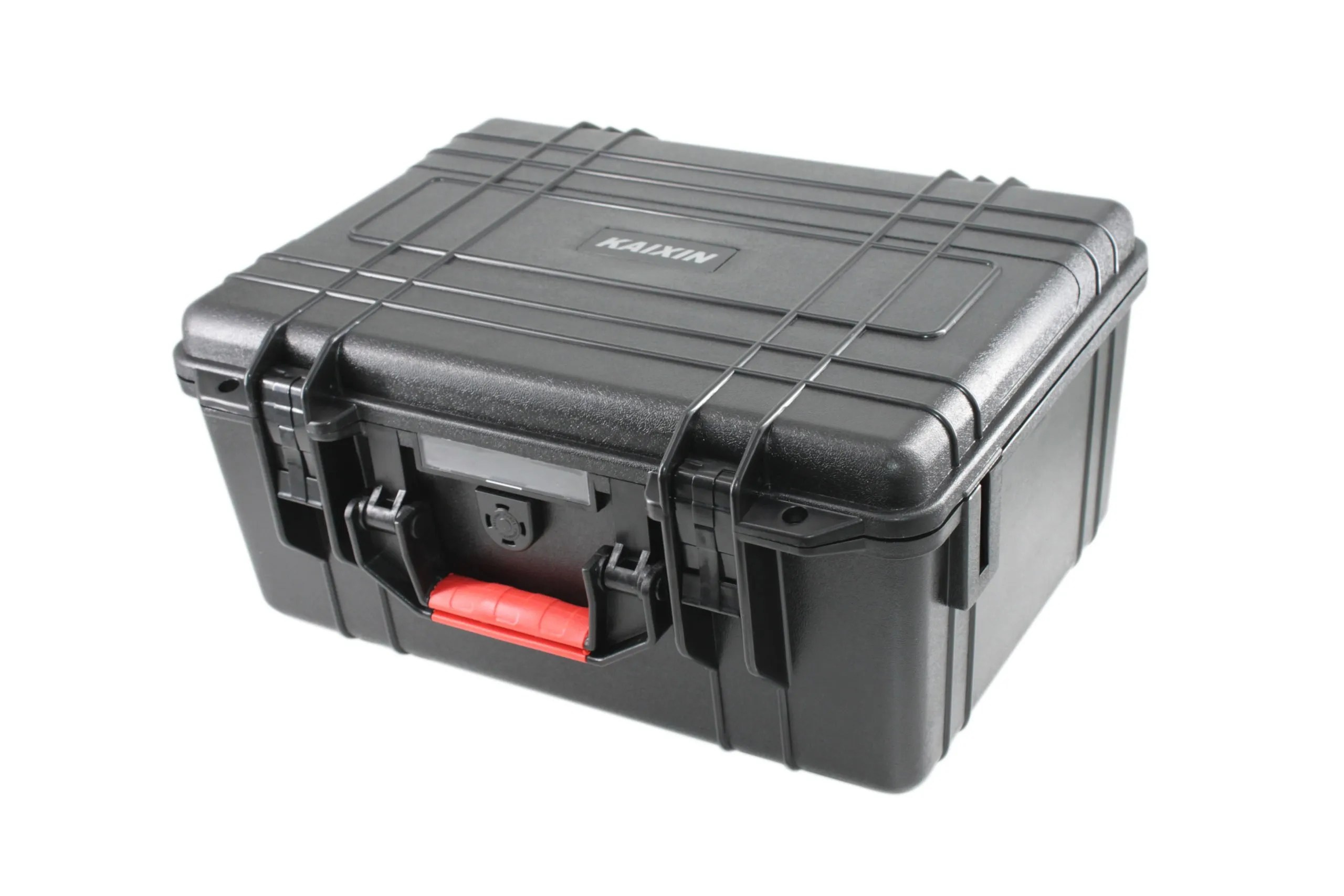

– Plastic seal box: 1pc
– Shutter release: 1pc

Optional:
– Probes:
– 6.5MHz micro-convex probe (5.0/6.5/7.5/9.0 MHz)
– 3.5Mhz loin muscle linear probe (2.0/2.5/3.5/5.0 MHz)
– 3.5MHz convex probe (2.0/2.5/3.5/5.0 MHz)
– 7.5MHz linear probe (6.0/6.5/7.5/9.0 MHz)
– 4.0MHz convex rectal probe (2.0/2.5/4.0/5.0 MHz)

-Wireless monitor

Additional information

Weight 1,1 kg
Dimensions 28,5 × 14,3 × 3,5 cm
Probe

std 6.5MHz linear rectal, 3.5MHz convex abdomen, 6.5MHz micro-convex, 7.5MHz high freq linear, 3.5MHz loin muscle linear, 4.0MHz convex rectal

Specifications & Manuals

Technical Summary:
– Display: 5.6 inch LCD screen.
– Multiple interface Languages: support 7 languages, Chinese, English, French, Russian, Spanish, Portuguese, Polish, etc.
– Single probe connector configuration, with automatic identification technology, supports a variety of probe options.
– Body mark: A total of 31 body marks with probe position.
– Scan mode: Electronic convex array, linear array
– Five Display modes: B, B/B, 4B, B/M, M
– Frequency: 3.5/4.0/6.5/7.5MHz.
– Gain Range: 0~127dB.
– Intelligent TGC control: Far and near field adjustment; Near field: 0~-31dB; Far field: 0~31dB.
– Dynamic adjustment range: 27~90dB.
– Gray: Level 256.
– Frequency conversion of the probe: 4 level frequency conversion (conversion point depending on the different probes).
– Frame correlation: Four-level adjustment: 0, 1, 2, 3.
– Image processing(IP): Four-level adjustment: 0, 1, 2, 3.
– Edge enhancement: Four-level adjustment: 0, 1, 2, 3.
– Design with the function of partial enlargement and partial color enhancement.
– 8 depth ranges, the maximum display depth is 200mm.
– With the image up and down, left and right flip function.
– Color selection: 8 color image conversion (including a black and white image).
– Image filters: 2 types.
– Image storage: One-key storage, 420 images can be permanently stored.
– Cine Loop: 246 frames.
– Automatic ruler: display the back-fat ruler, easy for visually check, focus on a quick back-fat thickness measurement.
– Display pregnancy test results for easy recording and data management.
– Equipped with image parameter recovery function.
– General measurements: distance, perimeter, area, volume, cycle, heart rate, slope.
– Obstetric measurement: gestational age and expected date of birth for Bovine, Equine, Ovine, Canine, Feline, Goat, Llama, Swine.
– The function of measuring and calculating the lean meat percentage of pigs.
– Obstetric report function.
– Energy saving function
– Character brightness: The character brightness can be selected among 160, 192, 224, and 255.
– Key tone: 2 states (on, off).
– Multiple Grid: 8 states (no grid, line grid, dot grid, 10mm pitch dot ruler, 2mm pitch dot ruler, 10mm and 2mm Spacing point scale, grid with 1mm spacing longitudinally, grid with 5mm spacing longitudinally, grid with 10mm spacing longitudinally at different depths).
– Checking list: record the pregnancy status of each check, convenient for batch management of the data; Maximum storage of 200 checklists.
– Dual-standard TV output: PAL/ NTSC, can be connected to a video recorder.
– Dual power supply. Power supply: 100-240V~±10% 1.4-0.6A Frequency: 50-60Hz±1Hz.
– Battery configuration: One large-capacity (5200mAh) lithium battery, work for at least 5 hours.
– Host size: 285mm (length) × 143mm (width) × 35mm (height).
– Host weight: 1.1kg (excluding accessories).

The Leaflet of the Veterinary Ultrasound Scanner KX5600F of Kaixin can be found here:
KaiXin KX5600F Veterinary Ultrasound Scanner KX5600F leaflet

The Manual of the KX5600F can be checked here:
KaiXin Veterinary Ultrasound Scanner KX5600F users manual
