Veterinary Ultrasound Scanner KX5200V

4.048,764.709,92 excl. VAT

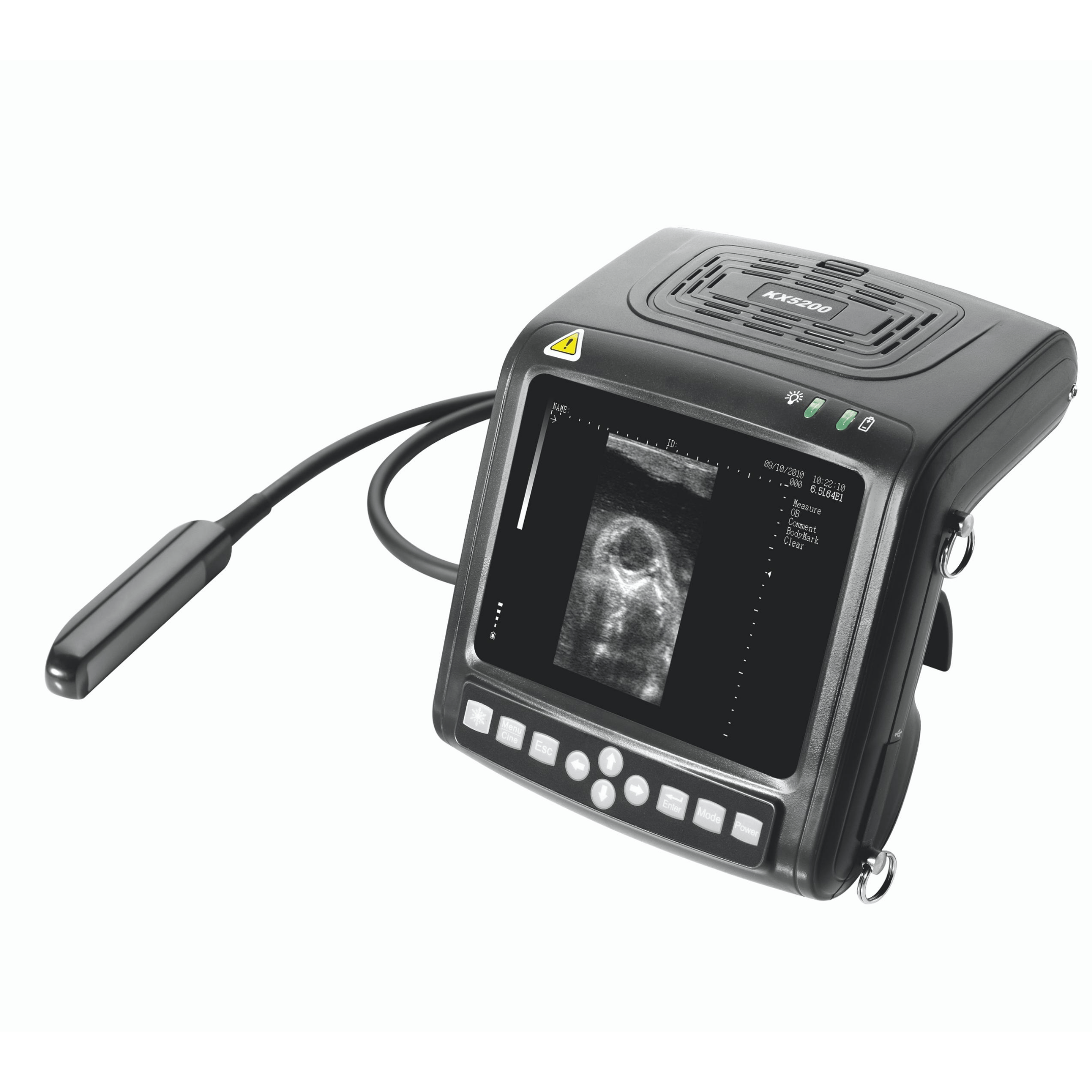

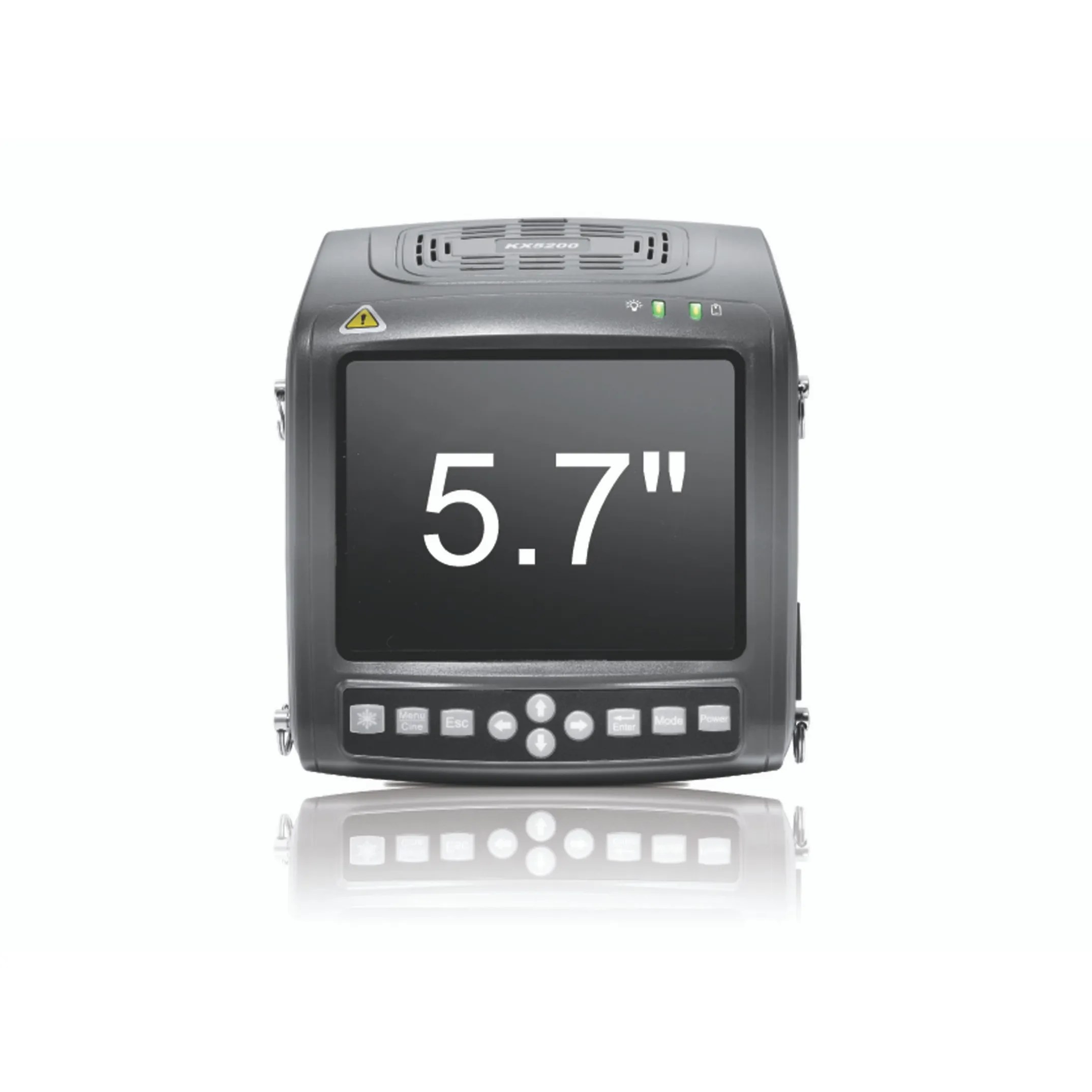

Veterinary Ultrasound Scanner KX5200V


Veterinary Ultrasound Scanner KX5200V

The Veterinary Ultrasound Scanner KX5200V is the topper for Kaixin, thé innovative expert in the domain of ultrasound scanners for human as well as veterinary use. This is one of the best sold ultrasound scanners with an amazing Price/Performance ratio. With its ultra low weight, long time battery use, uniques design, multiple use methods is it excellent to be used over long time without the fear of getting “operating fatigue”.
Different probes can be provided for the distinguished research methods and type of animals.

– Net weight:1.1kg. Smart and light.

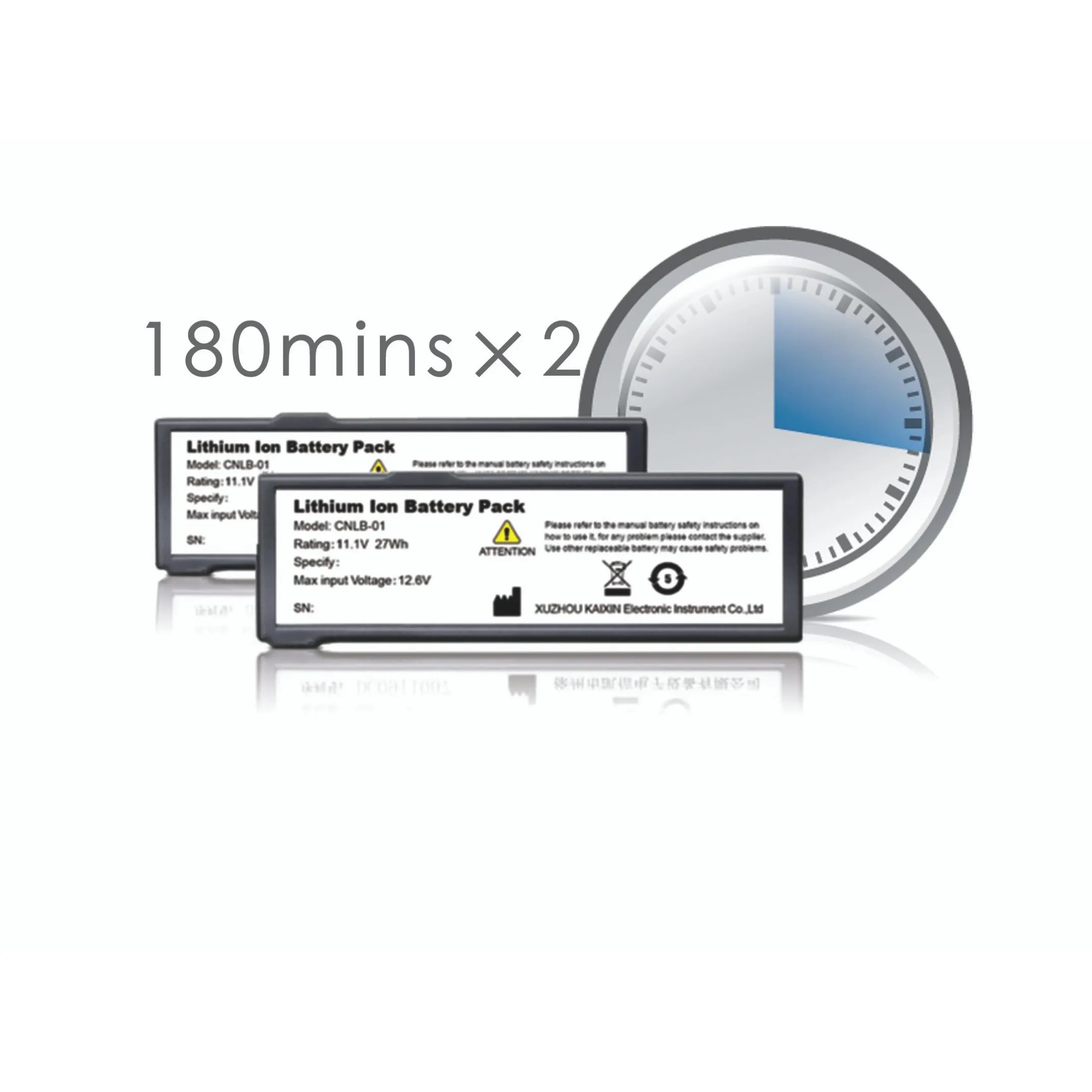

– High-capacity lithium Battery ,more than 6 hours work.
– Standard configuration 1 pc of sunshine cover, suitable for use in outdoor strong sunshine.

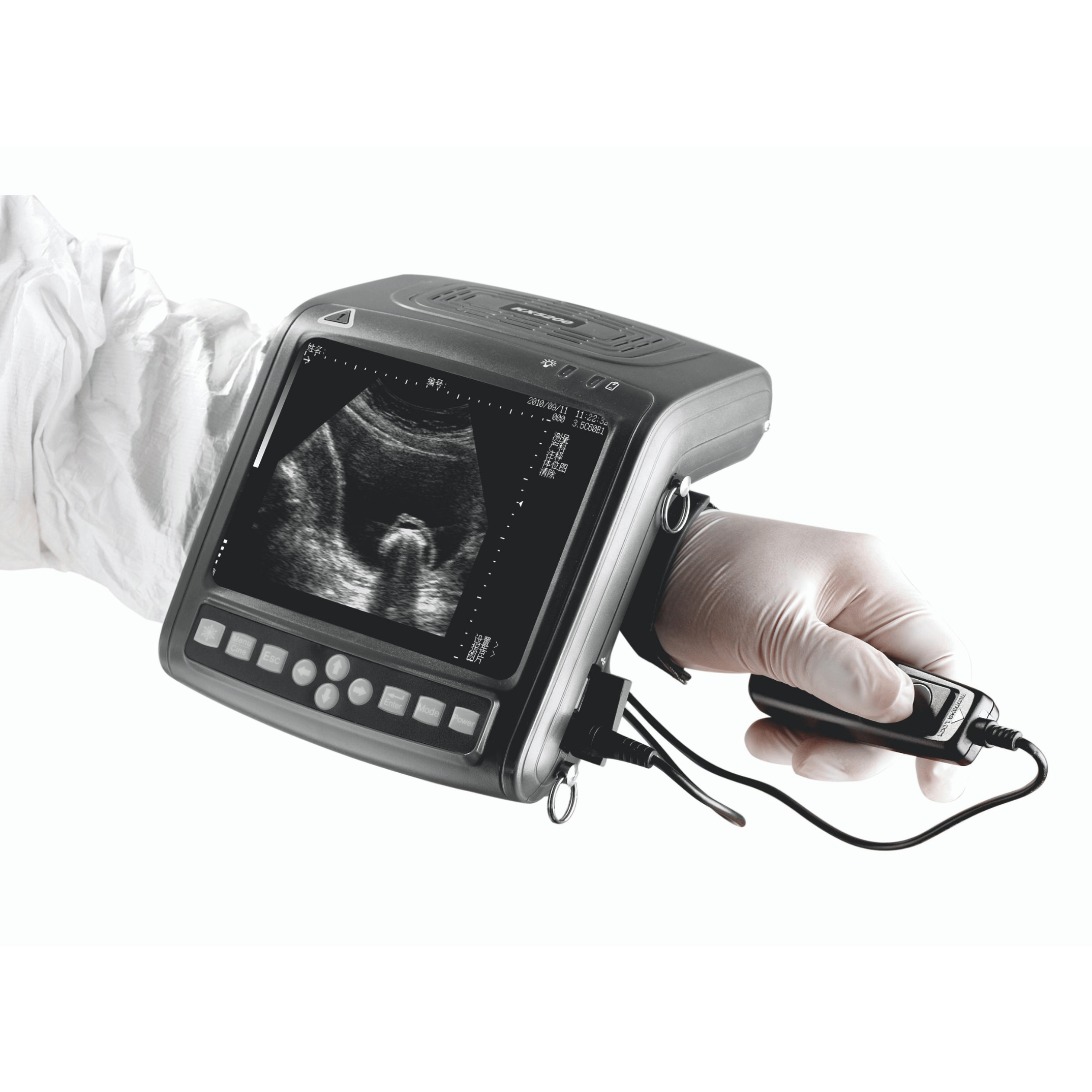

– Available for left/right hand alternative use, eliminating operate fatigue.
– Multiple use method: hand-held, chest hanging, back hanging , waist hanging, etc.
– Optional professional ultrasound goggle, convenient for outdoor use, meet different need.

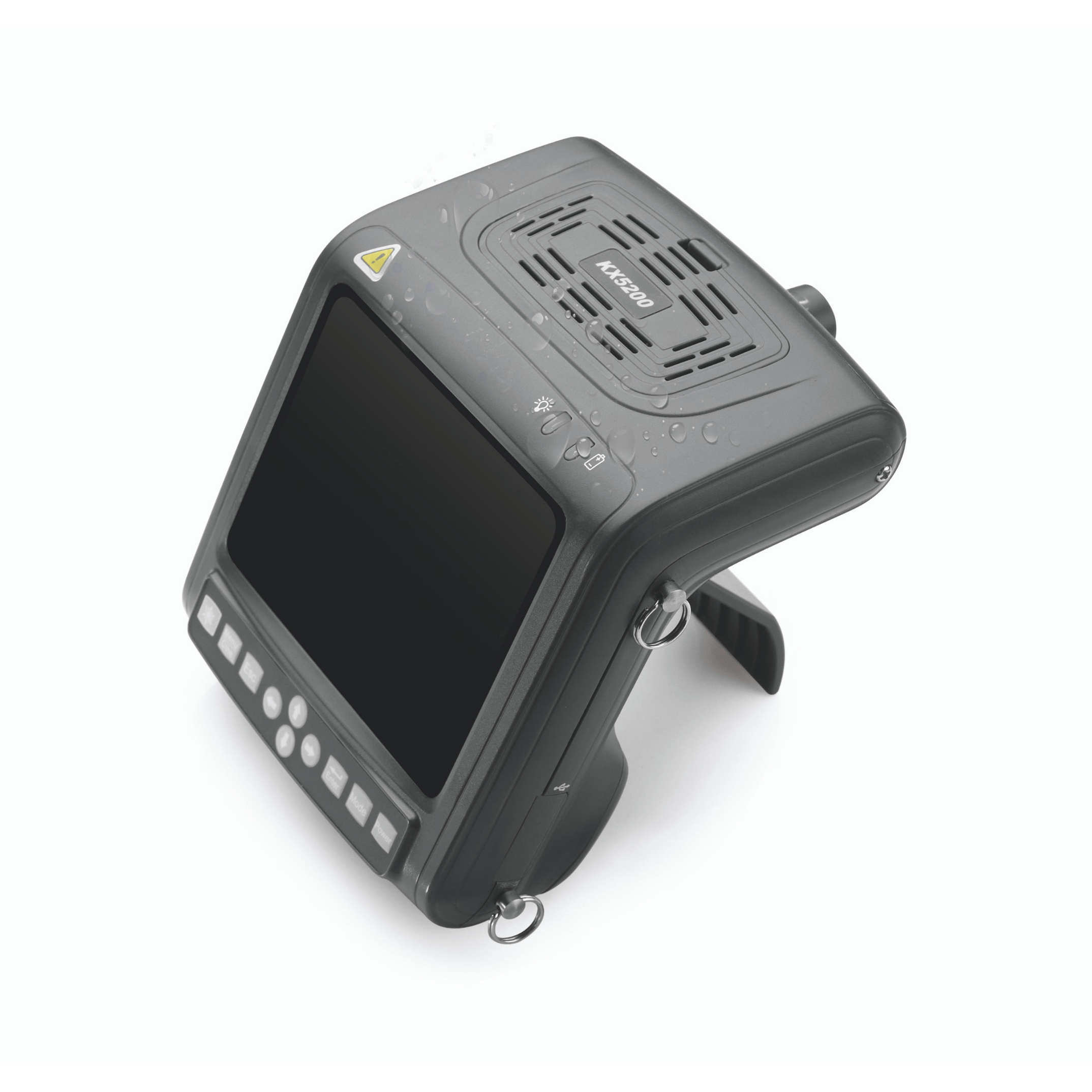

– Sophisticated craft, have soft rubber coat, splash-proof, dust-proof.

Standard configuration:
– Main unit
– 6.5MHz rectal probe (multi frequency without handle)
– 2pcs lithium batteries
– Charger
– Belt
– Bracket
– Leather case
– Handle freeze switch

Optional Probes:
– 4.0 MHZ multi-frequency rectal convex
– 6.5 MHz multi-frequency linear rectal
– 3.5 MHz multi-frequency convex
– 7.5 MHz high multi-frequency liner
– 5.0 MHz multi-frequency micro-convex

Additional information

Weight 1,1 kg
Dimensions 15,5 × 18,0 × 8 cm

std 6.5MHz linear rectal, 3.5MHz convex abdomen, 6.5MHz micro-convex, 7.5MHz high freq linear, 3.5MHz loin muscle linear, 4.0MHz convex rectal, 6.5MHz linear rectal + handle

Specifications & Manuals

Short Specifications:
– Scanning mode: B, 2B, 4B, B/M, M
– Full field image with 8 levels depth adjustment
– Dynamic Range: 27-90 dB, visual adjustment
– Local zooming function
– image storage: 100 frames permanent storage without loss of the image when powered off
– Cine loop: 256 frames
– High Speed USB-A port: Supporting large capacity USB flash disk and mouse
– High speed USB port B: Supporting image transfer to PC (optional case report processing software)
– Warranty main unit+probes 3 years and batteries and other accessories 1 year

The leaflet of the Veterinary Ultrasound Scanner KX5200V of Kaixin can be found here:KX5200V veterinaire ultrasound scanner leaflet

The detailed Manual of the KaiXin Ultrasound Scanner KX5200V can be studied here:
KaiXin Ultrasound Scanner KX5200 user’s manual V3.12


1. “Guaranteed Uptime” Contract
This product can be offered with a “guaranteed uptime” contract. With this contract the customer is guaranteed to remain in full operation.
Equip4Vets will keep the same or a similar (same functionality) in our store, available as replacement in the event that the original product refuses proper operation.
Please request the T&C and our attractive pricing schedule.

2. “Lease” Contract
This product can also be “leased” for 3 years. After the 3 years there will be a transfer of ownership from Equip4Vets to the customer.
Please request the T&C and our attractive pricing schedule.
