Veterinary Wireless Endoscopy Camera + Portable LightSource System
Price range: €2.111,57 through €3.347,11 excl. VAT
Veterinary Wireless Endoscopy Camera System
Please ask for quote (info@equip4vets.com) whenever another configuration is required…additional types! We would be more than happy to assist you with your requirements!
Please indicate below, on every question(!), your choice!
Description
Veterinary Wireless Endoscopy Camera + Portable LightSource System
This very user friendly, efficient, system consist out of a Wireless Endoscopy Camera + a Portable LightSource + an applicable Endoscope (see tables) and cannot be missed in a respectable veterinary practise.

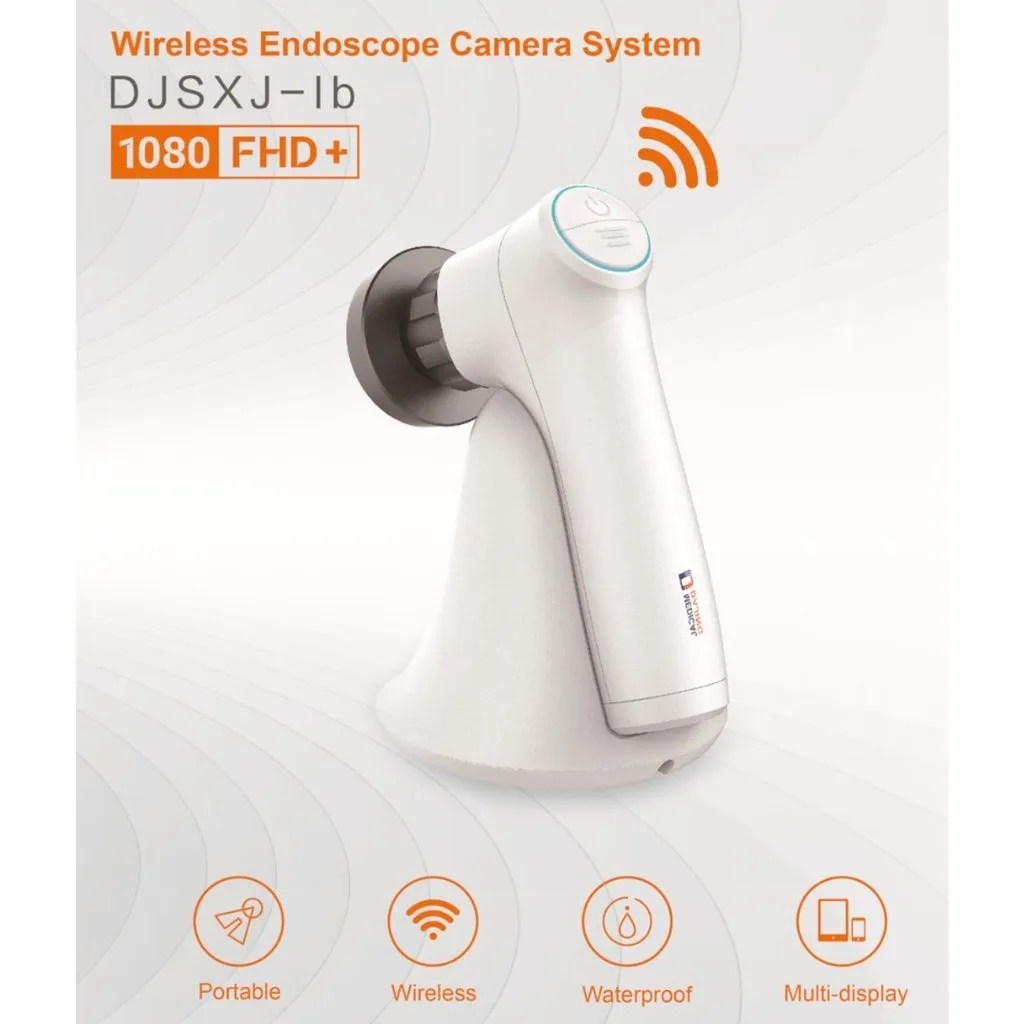

Wireless Endyscopy Camera DJSXJ-lb:
This product is used to magnify the image of the operating area in the body during endoscopic operation Its main working principle is to connect with various medical endoscopes and enter the body through surgical channels or natural cavities. Endoscop e is used to magnify and imag e of the operating area and transmit it to display screen in real time for observation, magnification, recording and playback.
Content:
– Camera control host 1; (including control software of endoscope camera system V1.0 se t, including 1 battery)
– 1 Optical coupler
– 1 USB charger;
– 1 USB charging cable;
– 1 operation manual;
– 1 certificate of qualification.
This product offer illumination for endoscope operation. The light source can be divided into two types according to the differences of light emitting devices, one is solid heat radiation light source, e.g. halogen tungsten lamp, halogen tungsten filling hernia etc.; the other is gas-discharge source such as xenon lamp and various metal halide lamps. The light source has been widely used as the illumination light source of medical endoscopes for it can produce cold light,its color is close to sunlight and good intensity of illumination. As an important accompanied device of various medical endoscopes, the performance of light source may directly affect doctors’ observation and operation effect. This portable LED light source is composed by a LED, a control circuit and a light source output interface, a charger and a rechargeable battery.
Content:
– Light source handle 1pc;
– Rechargeable lithium battery 2pcs;
– Charging 1pc;
– Power cable 1pc;
– Usermanual 1pc;
– Quality Certificate 1pc
Application of the different endoscopy investigations is recommended as follows:
| Type | Purpose | Applications | Notes |
| Sinoscope | Examination of nasal cavities and sinuses | Used for rhinoscopy, sinus evaluation, and nasopharynx | Common in dogs with chronic nasal discharge, epistaxis, or foreign bodies |
| Otoscope | Examination of ear canal and tympanic membrane | Used for otitis externa/media evaluation | May be rigid or flexible; often includes a working channel for flushing or biopsy |
| Laryngoscope | Examination of the larynx and upper airway | Used for assessing laryngeal function, intubation, or laryngeal paralysis | Short rigid or video-laryngoscope |
| Laparoscope | Abdominal examination or surgery | Used in laparoscopic surgery (spay, cryptorchidism, liver biopsy, exploration) | Requires CO₂ insufflation and sterile setup |
Recommended dimensions per species
| Species | Application | Scope Type | Diameter | Length | Notes |
|---|---|---|---|---|---|
| Dog | Nose/Sinuses | Sinoscope | 2.7–5 mm | 10–30 cm | 2.7 mm for small breeds, 4–5 mm for medium/large breeds |
| Ear | Otoscope | 2.7–4 mm | 10–15 cm | 2.7 mm for small breeds, 4 mm for large breeds | |
| Larynx | Laryngoscope | 5 mm | 18–20 cm | Often rigid or video-laryngoscope | |
| Abdomen | Laparoscope | 5–10 mm | 30–33 cm | 5 mm for small/medium dogs, 10 mm for large dogs | |
| Cat | Nose | Sinoscope | 1.9–2.7 mm | 10–18 cm | Small nasal passages require thin scopes |
| Ear | Otoscope | 1.9–2.7 mm | 10 cm | Narrow ear canals | |
| Larynx | Laryngoscope | 2.7–4 mm | 10–15 cm | Often flexible for better access | |
| Abdomen | Laparoscope | 5 mm | 20–30 cm | 5 mm is sufficient | |
| Horse | Nose/Sinuses | Sinoscope | 8–10 mm | 60–100 cm | Flexible scope required for guttural pouch and nasopharynx |
| Larynx | Laryngoscope | 10 mm | 100 cm | Used to assess laryngeal function at rest and during exercise | |
| Abdomen | Laparoscope | 10 mm | 57–70 cm | Used for abdominal exploration or cryptorchidism | |
| Ruminants (cattle, sheep, goats) | Abdomen | Laparoscope | 10 mm | 57–70 cm | Used for laparoscopic AI, biopsy, or reproductive procedures |
| Rabbit / Guinea pig | Ear/Nose | Otoscope / Sinoscope | 1.9 mm | 10 cm | Very narrow passages |
| Bird / Reptile | Cloaca, airways, coelom | Rigid endoscope | 1.9–2.7 mm | 10–18 cm | 30° angle often used; high-resolution optics recommended |
Viewing Angles
0° → Direct, straightforward visualization (ear, sinus).
30° or 45° → Most common; ideal for nasal or laparoscopic use (better field of view).
70° → For specialized procedures when viewing around structures.
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 66 × 50 × 22 cm |
| System + Type Endoscope (choose 1 and tick the "Not Applicable") | Sinoscope, Otoscope, Laryngoscope, Laparoscope |
| Sinoscope | Not Applicable, 0° Ø4mm x 175mm, 30° Ø4mm x 175mm, 70° Ø4mm x 175mm, 0° Ø2. 7/3mm x 175mm, 30° Ø2.7/3mm x 175mm, 0° Ø4mm Wide angle x 175mm, 30° Ø4mm Wide angle x 175mm, 70° Ø4mm Wide angle x 175mm |
| Otoscope | Not Applicable, 0° Ø4mm x 50mm, 30° Ø4mm x 50mm, 0° Ø2.7/3mm x 100mm, 30° Ø2.7/3mm x 100mm |
| Laryngoscope | Not Applicable, 70° Ø6mm x 175mm, 70° Ø8mm x 175mm, 90° Ø8mm x 175mm |
| Laparoscope | Not Applicable, 0° Ø10mm x HD 325mm, 30° Ø10mm x HD 325mm |
Specifications & Manuals
The Manual of the Wireless Endoscopy Camera can be found here:
user manual Veterinary Wireless Endoscopy Camera DJSXJ-Ib
The Manual of the Portable LightSource can be found here:
Portable LED Light Source User Manual LEDQM-01

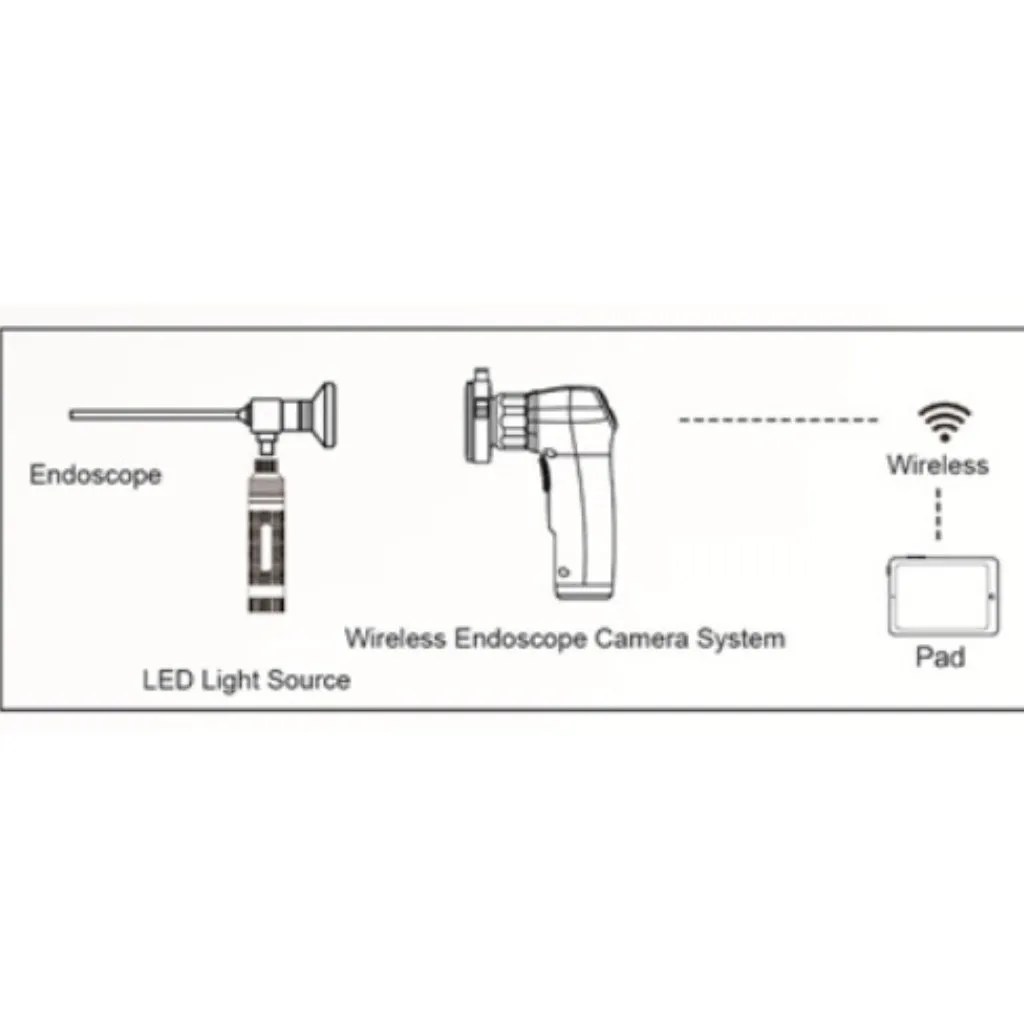

The Connection and Application is described in this manual:
Wireless Endoscope Camera Version Connection Instruction
The Specification and Features of the Veterinary Wireless Endoscopy Camera:
Addons
1. “Guaranteed Uptime” Contract
This product can be offered with a “guaranteed uptime” contract. With this contract the customer is guaranteed to remain in full operation.
Equip4Vets will keep the same or a similar (same functionality) in our store, available as replacement in the event that the original product refuses proper operation.
Please request the T&C and our attractive pricing schedule.
2. “Lease” Contract
This product can also be “leased” for 3 years. After the 3 years there will be a transfer of ownership from Equip4Vets to the customer.
Please request the T&C and our attractive pricing schedule.
