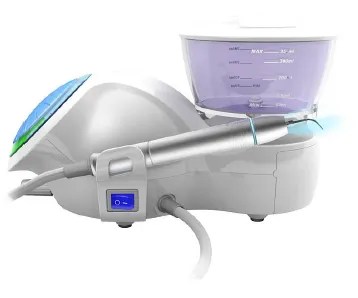

Veterinary Ultrasonic Scaler P9L

Specifications & Manuals

Technical Specifications
– Input: 230V AC, 50/60Hz, 150mA
– Output Power: 3W tot 20W
– Output primary tip vibration excursion: ≤ 200um
– Output tip vibration frequency: 28KHz ± 3KHz
– Output half-excursion force: < 2N
– Water flow rate: 0~50ml/min
– Weight main unit: 2.5kg
– Operating mode: continuous operation
– Classification 93/42/EEC: Class IIa
– Electrical shock protection type: Class II
– Degree of protection against electrical shock: B F
– Degree of protection against harmful ingress of water: Ordinary equipment (IPX0), Foot switch (IPX1)
– Degree of safety of application in the presence of flammable anesthetic mixture with air or oxygen or nitrous oxide: Equipment not suitable for being used in the presence of flammable anesthetic mixture with air or with oxygen or nitrous oxygen

Operational Conditions:
– Environmental temperature:+10C to +40C
– Environmental humidity: 0 – 80%
– Athmospheric Pressure: 700hPa to 1060hPa

The Manual of the Veterinary Ultrasonic Scaler P9L can be studied here:
P9 Series Scaler Instruction Manual (A6 Version)-20160801

A short video impression can be seen here:

CE certificates:
CE-2019(No.DD 60143318 0001) P9L CE certificate
P9L CE certificate extension
